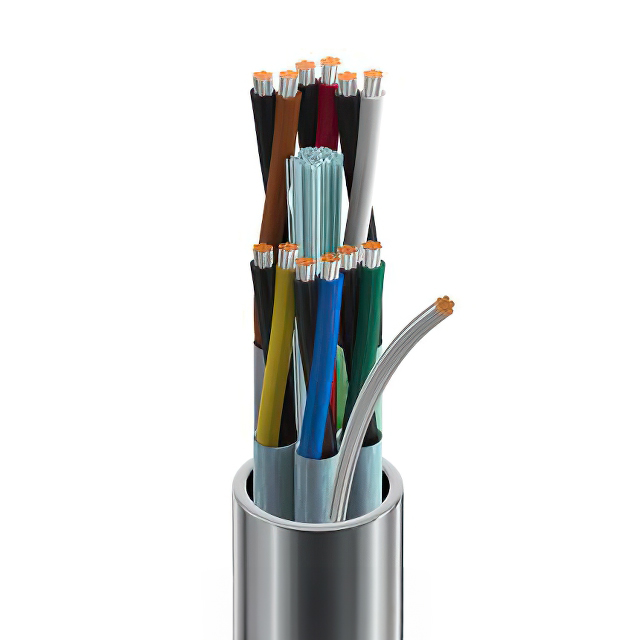

Specification	83659 0021000

Cable Type	Conductor, Multi
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Tinned, Copper
Conductor Strand Count	19
Conductor Strand Gauge	30 AWG
Jacket (Insulation) Diameter	0.265 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Red
Length	1000 ft
Number of Conductors	9
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-70 °C
Shield Coverage	85%, 100%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Usage	Instrumentation, Control, Audio
Voltage	300 V
Wire Gauge	18 AWG

83659 Series

Part	Usage	Length	Conductor Insulation	Conductor Material	Cable Type	Operating Temperature (Min)	Operating Temperature (Max)	Jacket (Insulation) Diameter	Voltage	Number of Conductors	Jacket (Insulation) Thickness	Wire Gauge	Conductor Strand Count	Conductor Strand Gauge	Jacket Color	Shield Type	Jacket (Insulation) Material	Shield Material	Shield Coverage
Belden Inc. 83659 0021000	Audio Control Instrumentation	1000 ft	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	Conductor Multi	-70 °C	200 °C	0.265 in	300 V	9	0.015 in	18 AWG	19	30 AWG	Red	Braid Foil	Fluorinated Ethylene-Propylene (FEP) Plenum	Aluminum Copper Tinned	100% 85%
Belden Inc. 83659 002500	Audio Control Instrumentation	500 ft	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	Conductor Multi	-70 °C	200 °C	0.265 in	300 V	9	0.015 in	18 AWG	19	30 AWG	Red	Braid Foil	Fluorinated Ethylene-Propylene (FEP) Plenum	Aluminum Copper Tinned	100% 85%
