83659 002500

Active

Belden Inc.

CABLE 9COND 18AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

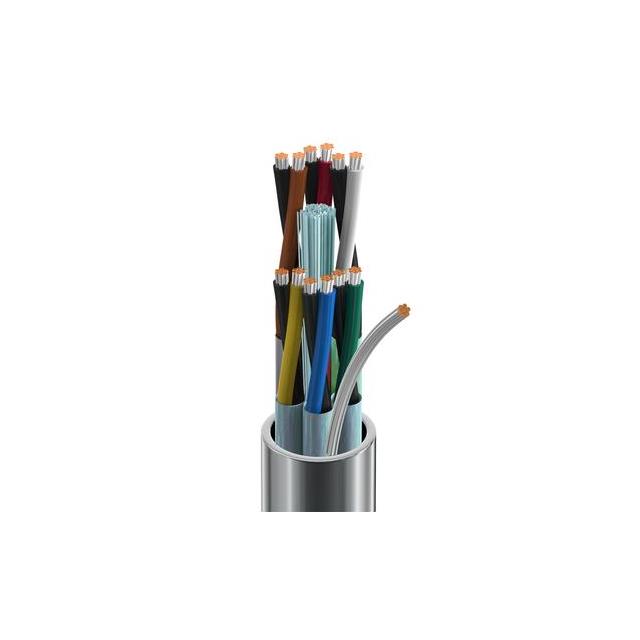

CABLE 9COND 18AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83659 002500

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	6.73 mm
Jacket (Insulation) Diameter [diameter]	0.265 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	9
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Shield Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Shield Coverage	Number of Conductors	Conductor Insulation	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Wire Gauge	Cable Type	Usage	Length [x]	Length [x]
Belden Inc. 83659 0021000	200 °C	-70 °C	300 V	0.015 in	0.381 mm	Braid Foil	Aluminum Copper Tinned	Red	6.73 mm	0.265 in	1000 ft	304.8 m	85 % 100 %	9	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	19	30 AWG	Fluorinated Ethylene-Propylene (FEP) Plenum	18 AWG	Multi-Conductor	Audio Control Instrumentation
Belden Inc. 83659 002500	200 °C	-70 °C	300 V	0.015 in	0.381 mm	Braid Foil	Aluminum Copper Tinned	Red	6.73 mm	0.265 in			85 % 100 %	9	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	19	30 AWG	Fluorinated Ethylene-Propylene (FEP) Plenum	18 AWG	Multi-Conductor	Audio Control Instrumentation	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 20.29

General part information

9 Conductor Multi-Conductor Cable Red 18 AWG Foil, Braid 500.0' (152.4m)

Technical documentation and resources
