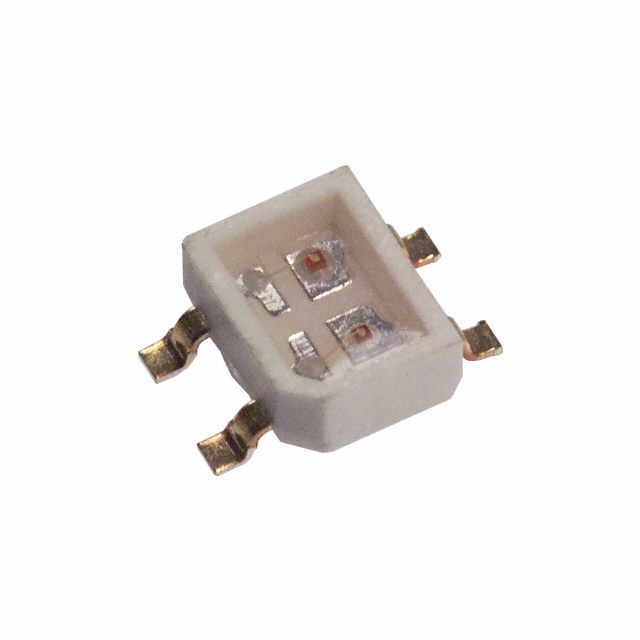

SSL-LXA3025YGC-TR

Active

Lumex Opto/Components Inc.

LED GRN/YLW CLEAR AXIAL SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GRN/YLW CLEAR AXIAL SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Green, Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 4-SMD, Gull Wing

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED GREEN/RED CLEAR AXIAL SMD

Part	Lens Color	Color	Viewing Angle	Mounting Type	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Lens Transparency	Current - Test	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Height (Max) [Max]	Millicandela Rating [custom]	Millicandela Rating [custom]	Package / Case	Configuration	Millicandela Rating
Lumex Opto/Components Inc. SSL-LXA3025IGC-TR	Colorless	Green, Red	130 °	Surface Mount	565 nm, 635 nm	2.8 mm	3.4 mm	Rectangle with Flat Top	Clear	20 mA, 20 mA	2 V, 2.2 V	Axial	1.5 mm	12 mcd	20 mcd	4-SMD, Gull Wing	Independent
Lumex Opto/Components Inc. SSL-LXA3025YGC-TR	Colorless	Green, Yellow	130 °	Surface Mount	565 nm, 585 nm	2.8 mm	3.4 mm	Rectangle with Flat Top	Clear	20 mA, 20 mA	2.1 V, 2.2 V	Axial	1.5 mm			4-SMD, Gull Wing	Independent	12 mcd, 12 mcd
