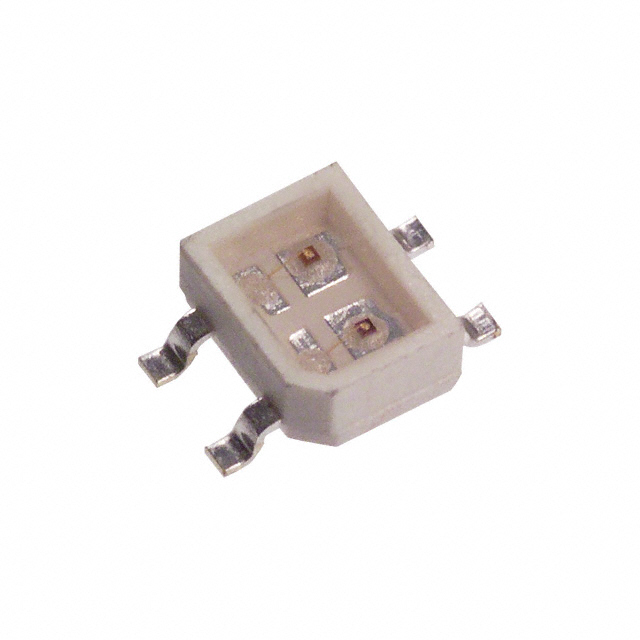

SSL-LXA3025IGC-TR

Active

Lumex Opto/Components Inc.

LED GREEN/RED CLEAR AXIAL SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GREEN/RED CLEAR AXIAL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED GREEN/RED CLEAR AXIAL SMD

Part	Lens Color	Color	Viewing Angle	Mounting Type	Wavelength - Peak	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Lens Transparency	Current - Test	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Height (Max) [Max]	Millicandela Rating [custom]	Millicandela Rating [custom]	Package / Case	Configuration	Millicandela Rating
Lumex Opto/Components Inc. SSL-LXA3025IGC-TR	Colorless	Green, Red	130 °	Surface Mount	565 nm, 635 nm	2.8 mm	3.4 mm	Rectangle with Flat Top	Clear	20 mA, 20 mA	2 V, 2.2 V	Axial	1.5 mm	12 mcd	20 mcd	4-SMD, Gull Wing	Independent
Lumex Opto/Components Inc. SSL-LXA3025YGC-TR	Colorless	Green, Yellow	130 °	Surface Mount	565 nm, 585 nm	2.8 mm	3.4 mm	Rectangle with Flat Top	Clear	20 mA, 20 mA	2.1 V, 2.2 V	Axial	1.5 mm			4-SMD, Gull Wing	Independent	12 mcd, 12 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Red LED Indication - Discrete 2.2V Green, 2V Red 4-SMD, Gull Wing
