VNA18-S1S1-S24
ActiveConductRF

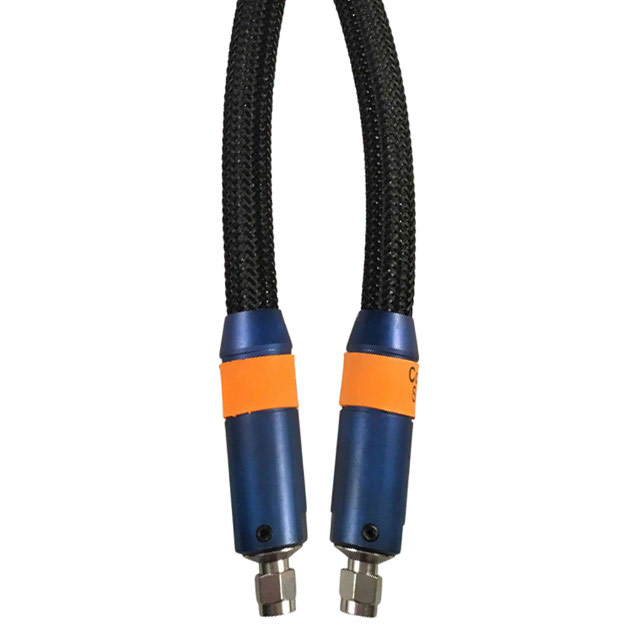

CBL ASSY SMA PLUG TO PLUG 24"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VNA18-S1S1-S24
ActiveConductRF
CBL ASSY SMA PLUG TO PLUG 24"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VNA18-S1S1-S24 | VNA18 Series |
|---|---|---|
| 1st Connector | SMA Plug | SMA Plug, SMA Jack, 3.5mm Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Contact Gender | Male | Male, Female |
| 2nd Connector | SMA Plug | N-Type Plug, SMA Plug, N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Contact Gender | Male | Male, Female |
| Cable Type | VNA | VNA |
| Color | Black | Black |
| Features | Shielded, Armored Cable | Shielded, Armored Cable |
| Frequency - Max [Max] | 18 GHz | 18 GHz |
| Length | 24 " | 24 - 48 " |
| Length | 609.6 mm | 609.6 - 1200 mm |
| Length | - | 4 ft |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Impedance | 50 Ohms | 50 Ohms |
| Style | SMA to SMA | N-Type to N-Type, SMA to SMA, N-Type |
| Style | - | 3.5 mm |
VNA18 Series
CBL ASSY NTYPE PLUG TO PLUG 24"
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Style | Length | Length | Overall Impedance | 1st Connector Mounting Type | 2nd Connector Mounting Type | 2nd Contact Gender | Features | 1st Contact Gender | 2nd Connector | Color | Cable Type | Frequency - Max [Max] | 1st Connector | Style | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ConductRF VNA18-N1N1-S24 | -55 °C | 125 °C | N-Type to N-Type | 24 " | 609.6 mm | 50 Ohms | Free Hanging (In-Line) | Free Hanging (In-Line) | Male | Armored Cable, Shielded | Male | N-Type Plug | Black | VNA | 18 GHz | |||
ConductRF VNA18-S1S1-S24 | -55 °C | 125 °C | SMA to SMA | 24 " | 609.6 mm | 50 Ohms | Free Hanging (In-Line) | Free Hanging (In-Line) | Male | Armored Cable, Shielded | Male | SMA Plug | Black | VNA | 18 GHz | SMA Plug | ||
ConductRF VNA18-S1SF-S24 | -55 °C | 125 °C | SMA to SMA | 24 " | 609.6 mm | 50 Ohms | Free Hanging (In-Line) | Free Hanging (In-Line) | Male | Armored Cable, Shielded | Female | SMA Plug | Black | VNA | 18 GHz | SMA Jack | ||
ConductRF VNA18-ENFNF-S24 | -55 °C | 125 °C | N-Type | 24 " | 609.6 mm | 50 Ohms | Free Hanging (In-Line) | Free Hanging (In-Line) | Female | Armored Cable, Shielded | Female | N-Type Jack | Black | VNA | 18 GHz | 3.5mm Jack | 3.5 mm | |
ConductRF VNA18-N1N1-S48 | -55 °C | 125 °C | N-Type to N-Type | 48 in | 1200 mm | 50 Ohms | Free Hanging (In-Line) | Free Hanging (In-Line) | Male | Armored Cable, Shielded | Male | N-Type Plug | Black | VNA | 18 GHz | 4 ft | ||
ConductRF VNA18-S1S1-S48 | -55 °C | 125 °C | SMA to SMA | 48 in | 1200 mm | 50 Ohms | Free Hanging (In-Line) | Free Hanging (In-Line) | Male | Armored Cable, Shielded | Male | SMA Plug | Black | VNA | 18 GHz | SMA Plug | 4 ft | |
ConductRF VNA18-ENFN1-S24 | -55 °C | 125 °C | N-Type | 24 " | 609.6 mm | 50 Ohms | Free Hanging (In-Line) | Free Hanging (In-Line) | Male | Armored Cable, Shielded | Female | N-Type Plug | Black | VNA | 18 GHz | 3.5mm Jack | 3.5 mm | |
ConductRF VNA18-N1NF-S24 | -55 °C | 125 °C | N-Type to N-Type | 24 " | 609.6 mm | 50 Ohms | Free Hanging (In-Line) | Free Hanging (In-Line) | Female | Armored Cable, Shielded | Male | N-Type Jack | Black | VNA | 18 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 517.60 | |
| 5 | $ 468.25 | |||
| 10 | $ 414.70 | |||
| 25 | $ 362.20 | |||
| 50 | $ 322.30 | |||
| 100 | $ 305.50 | |||
| 250 | $ 289.75 | |||
| 500 | $ 276.10 | |||
| 1000 | $ 263.50 | |||
Description
General part information
VNA18 Series
Cable Assembly Coaxial SMA to SMA VNA 24.00" (609.60mm)
