VNA18-N1N1-S24

Active

ConductRF

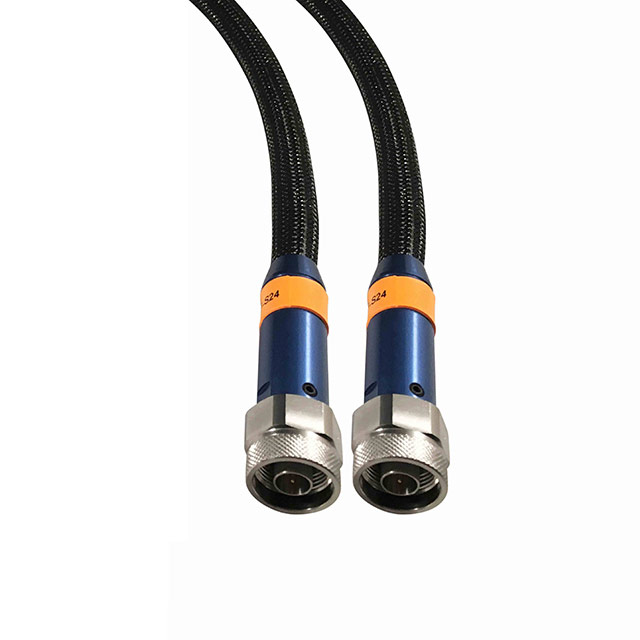

CBL ASSY NTYPE PLUG TO PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VNA18-N1N1-S24

Active

ConductRF

CBL ASSY NTYPE PLUG TO PLUG 24"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 517.60
		5	$ 468.25
		10	$ 414.70
		25	$ 362.20
		50	$ 322.30
		100	$ 305.50
		250	$ 289.75
		500	$ 276.10
		1000	$ 263.50

Description

General part information

VNA18 Series

Cable Assembly Coaxial N-Type to N-Type VNA 24.00" (609.60mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VNA18-N1N1-S24	VNA18 Series

1st Connector	-	SMA Plug, SMA Jack, 3.5mm Jack
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male, Female
2nd Connector	N-Type Plug	N-Type Plug, SMA Plug, N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male, Female
Cable Type	VNA	VNA
Color	Black	Black
Features	Shielded, Armored Cable	Shielded, Armored Cable
Frequency - Max [Max]	18 GHz	18 GHz
Length	24 "	24 - 48 "
Length	609.6 mm	609.6 - 1200 mm
Length	-	4 ft
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	N-Type to N-Type	N-Type to N-Type, SMA to SMA, N-Type
Style	-	3.5 mm

VNA18 Series

CBL ASSY NTYPE PLUG TO PLUG 24"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Style	Length	Length	Overall Impedance	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Contact Gender	Features	1st Contact Gender	2nd Connector	Color	Cable Type	Frequency - Max [Max]	1st Connector	Style	Length
ConductRF VNA18-N1N1-S24	-55 °C	125 °C	N-Type to N-Type	24 "	609.6 mm	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Armored Cable, Shielded	Male	N-Type Plug	Black	VNA	18 GHz
ConductRF VNA18-S1S1-S24	-55 °C	125 °C	SMA to SMA	24 "	609.6 mm	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Armored Cable, Shielded	Male	SMA Plug	Black	VNA	18 GHz	SMA Plug
ConductRF VNA18-S1SF-S24	-55 °C	125 °C	SMA to SMA	24 "	609.6 mm	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Armored Cable, Shielded	Female	SMA Plug	Black	VNA	18 GHz	SMA Jack
ConductRF VNA18-ENFNF-S24	-55 °C	125 °C	N-Type	24 "	609.6 mm	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Armored Cable, Shielded	Female	N-Type Jack	Black	VNA	18 GHz	3.5mm Jack	3.5 mm
ConductRF VNA18-N1N1-S48	-55 °C	125 °C	N-Type to N-Type	48 in	1200 mm	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Armored Cable, Shielded	Male	N-Type Plug	Black	VNA	18 GHz			4 ft
ConductRF VNA18-S1S1-S48	-55 °C	125 °C	SMA to SMA	48 in	1200 mm	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Armored Cable, Shielded	Male	SMA Plug	Black	VNA	18 GHz	SMA Plug		4 ft
ConductRF VNA18-ENFN1-S24	-55 °C	125 °C	N-Type	24 "	609.6 mm	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	Armored Cable, Shielded	Female	N-Type Plug	Black	VNA	18 GHz	3.5mm Jack	3.5 mm
ConductRF VNA18-N1NF-S24	-55 °C	125 °C	N-Type to N-Type	24 "	609.6 mm	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Female	Armored Cable, Shielded	Male	N-Type Jack	Black	VNA	18 GHz
