Q-0D02C0005018i
ActiveAmphenol Custom Cable

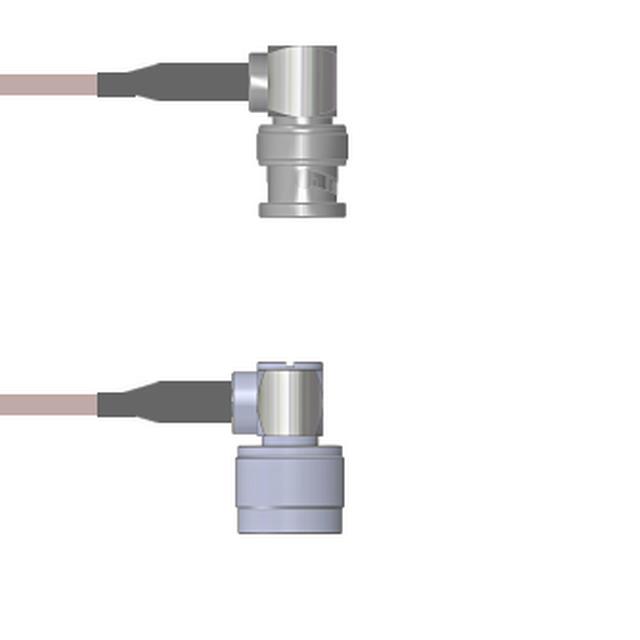

COAX CBL BNC TO N-TYPE 18"
Deep-Dive with AI
Search across all available documentation for this part.
Q-0D02C0005018i
ActiveAmphenol Custom Cable
COAX CBL BNC TO N-TYPE 18"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0D02C0005018i |
|---|---|
| 1st Connector | BNC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length [x] | 457.2 mm |
| Length [x] | 457.2 mm |
| Overall Impedance | 50 Ohms |
| Style | BNC to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 87.92 | |
| 25 | $ 86.21 | |||
| 50 | $ 84.51 | |||
| 100 | $ 82.81 | |||
| 250 | $ 81.10 | |||
Description
General part information
Q-0D02C0 Series
Cable Assembly Coaxial BNC to N-Type RG-316 18.00" (457.20mm)
Documents
Technical documentation and resources
No documents available
