Q-0D02C0003108i
ActiveAmphenol Custom Cable

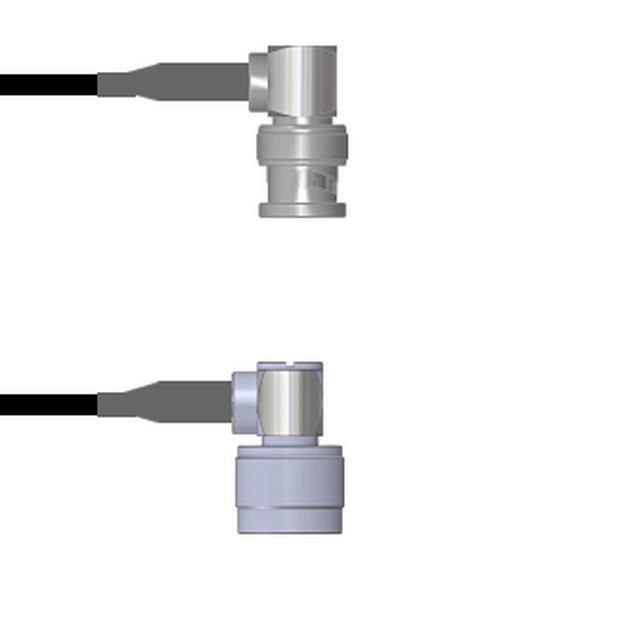

COAX CBL BNC TO N-TYPE 9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-0D02C0003108i
ActiveAmphenol Custom Cable
COAX CBL BNC TO N-TYPE 9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0D02C0003108i |
|---|---|
| 1st Connector | BNC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 2.7 m |
| Length | 9 ft |
| Length | 108 in |
| Overall Impedance | 50 Ohms |
| Style | BNC to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 91.80 | |
| 25 | $ 90.02 | |||
| 50 | $ 88.24 | |||
| 100 | $ 86.46 | |||
| 250 | $ 84.67 | |||
Description
General part information
Q-0D02C0 Series
Cable Assembly Coaxial BNC to N-Type RG-174 108.0" (2.7m) 9.0'
