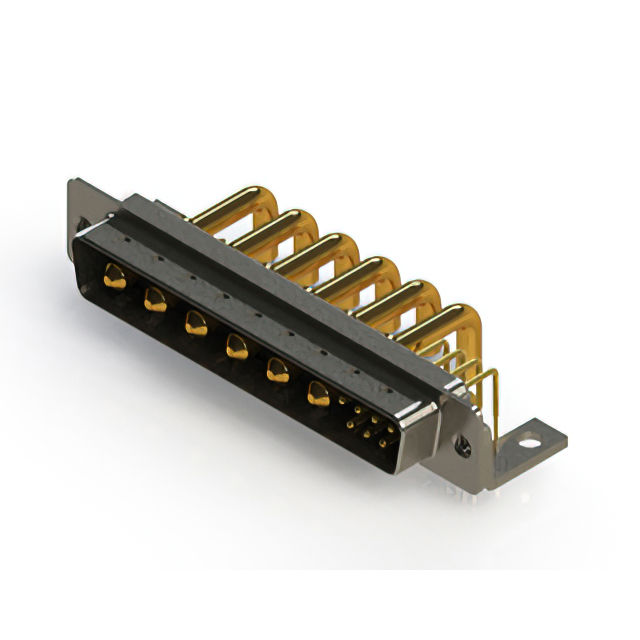

D-SUB MIXED CONTACT CONNECTORS RIGHT-ANGLE POWER COMBO D-SUB CONNECTOR
Connectors, Interconnects
629-13W6650-3T4
ActiveEDAC Inc.
D-SUB MIXED CONTACT CONNECTORS RIGHT-ANGLE POWER COMBO D-SUB CONNECTOR
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-13W6650-3T4 |
|---|---|
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Layout | C, DC |
| Connector Style | Combo, D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Contact Type | Signal, Power |
| Current Rating Options | 30A, 5A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets |
| Finish | Tin Plated |
| Flange Feature | Shell (4-40), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Normal) | 7 |
| Number of Positions (Power) | 6 |
| Number of Positions (Total) | 13 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 13W6 |
| Shell Material | Steel |
| Shell Size | 4 |
| Termination | Solder |
| Voltage Rating | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CAD
3D models and CAD resources for this part
Description
General part information
629-13W Series
13 (7 + 6 Power) Position D-Sub, Combo Plug, Male Pins Connector
