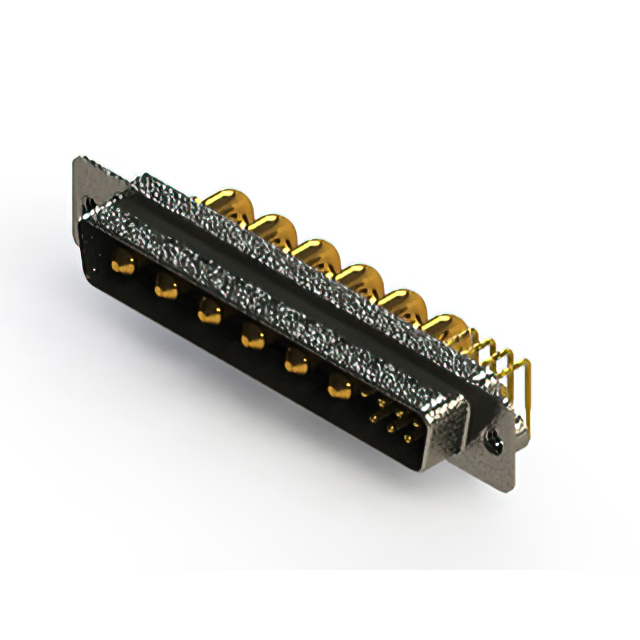

629-13W6240-3TA

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DC-13W6, PLUG, 13 CONTACTS, 7 SIGNAL, 6 POWER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

629-13W6240-3TA

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DC-13W6, PLUG, 13 CONTACTS, 7 SIGNAL, 6 POWER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-13W6240-3TA

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	13
Number of Positions [custom]	6
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	13W6, 4 (DC, C)
Termination	Solder
Voltage Rating	125 VDC

629-13W Series

...

Part	Contact Type	Contact Finish	Shell Size, Connector Layout	Current Rating (Amps)	Features	Connector Type	Dielectric Material	Color	Flange Feature	Termination	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Backset Spacing	Backset Spacing	Connector Style	Number of Rows	Contact Material	Number of Positions [custom]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shell Material, Finish	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Size, Connector Layout
EDAC Inc. 629-13W6650-4T3	Signal and Power	Gold	13W6 4 (DC C)	5 A 40 A	Board Lock Grounding Indents Mounting Brackets	Male Pins Plug	Polyester Thermoplastic	Black	Housing/Shell (4-40)	Solder	UL94 V-0	0.76 Ám	30 Áin	125 VDC	9.4 mm	0.37 in	Combo D-Sub	2	Copper Alloy	6	13	-55 °C	125 °C	Through Hole Right Angle
EDAC Inc. 629-13W6640-2N5	Signal and Power	Gold	13W6 4 (DC C)	5 A 20 A	Board Lock Grounding Indents Mounting Brackets	Male Pins Plug	Polyester Thermoplastic	Black	4-40	Solder	UL94 V-0	0.76 Ám	30 Áin	125 VDC	9.4 mm	0.37 in	Combo D-Sub	2	Copper Alloy	6	13	-55 °C	125 °C	Through Hole Right Angle	Nickel Plated Steel
EDAC Inc. 629-13W6250-3NE	Signal and Power	Gold	13W6 4 (DC C)	5 A 30 A	Grounding Indents Mounting Brackets	Male Pins Plug	Polyester Thermoplastic	Black	M3	Solder	UL94 V-0			125 VDC	9.4 mm	0.37 in	Combo D-Sub	2	Copper Alloy	6	13	-55 °C	125 °C	Through Hole Right Angle	Nickel Plated Steel	Flash
EDAC Inc. 629-13W6650-3T4	Signal and Power	Gold	13W6 4 (DC C)	5 A 30 A	Grounding Indents Mounting Brackets	Male Pins Plug	Polyester Thermoplastic	Black	Housing/Shell (4-40)	Solder	UL94 V-0	0.76 Ám	30 Áin	125 VDC	9.4 mm	0.37 in	Combo D-Sub	2	Copper Alloy	6	13	-55 °C	125 °C	Through Hole Right Angle
EDAC Inc. 629-13W6640-5NC	Coax Signal	Gold	13W6 4 (DC C)		Grounding Indents Mounting Brackets	Male Pins Plug	Polyester Thermoplastic	Black	Housing/Shell (M3)	Solder	UL94 V-0	0.76 Ám	30 Áin	125 VDC	9.4 mm	0.37 in	Combo D-Sub	2	Copper Alloy			-55 °C	125 °C	Through Hole Right Angle	Nickel Plated Steel		13	6	7
EDAC Inc. 629-13W3640-3N1	Signal and Power	Gold	13C3 13W3 B DB	5 A 30 A	Grounding Indents Shielded	Male Pins Plug	Polyester Thermoplastic	Black	Housing/Shell (Unthreaded)	Solder	UL94 V-0	0.76 Ám	30 Áin	125 VDC	9.4 mm	0.37 in	Combo D-Sub	2	Copper Alloy	3		-55 °C	125 °C	Through Hole Right Angle	Nickel Plated Steel				10	3
EDAC Inc. 629-13W6240-2T4	Signal and Power	Gold	13W6 4 (DC C)	5 A 20 A	Grounding Indents Mounting Brackets	Male Pins Plug	Polyester Thermoplastic	Black	Housing/Shell (4-40)	Solder	UL94 V-0			125 VDC	9.4 mm	0.37 in	Combo D-Sub	2	Copper Alloy	6	13	-55 °C	125 °C	Through Hole Right Angle		Flash
EDAC Inc. 629-13W6240-3TA	Signal and Power	Gold	13W6 4 (DC C)	5 A 30 A	Grounding Indents	Male Pins Plug	Polyester Thermoplastic	Black	Board Side (M3)	Solder	UL94 V-0			125 VDC	9.4 mm	0.37 in	Combo D-Sub	2	Copper Alloy	6	13	-55 °C	125 °C	Through Hole Right Angle		Flash
EDAC Inc. 629-13W6250-2T2	Signal and Power	Gold	13W6 4 (DC C)	5 A 20 A		Male Pins Plug	Polyester Thermoplastic	Black	Housing/Shell (4-40)	Solder	UL94 V-0			125 VDC	9.4 mm	0.37 in	Combo D-Sub	2	Copper Alloy	6	13	-55 °C	125 °C	Through Hole Right Angle		Flash
EDAC Inc. 629-13W6240-2T6	Signal and Power	Gold	13W6 4 (DC C)	5 A 20 A	Board Lock Grounding Indents	Male Pins Plug	Polyester Thermoplastic	Black	4-40	Solder	UL94 V-0			125 VDC	9.4 mm	0.37 in	Combo D-Sub	2	Copper Alloy	6	13	-55 °C	125 °C	Through Hole Right Angle		Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 11.15
Newark	Each	1	$ 15.42
		5000	$ 13.64

Description

General part information

629-13W Series

13 (7 + 6 Power) Position D-Sub, Combo Plug, Male Pins Connector
