JWM11RA2A

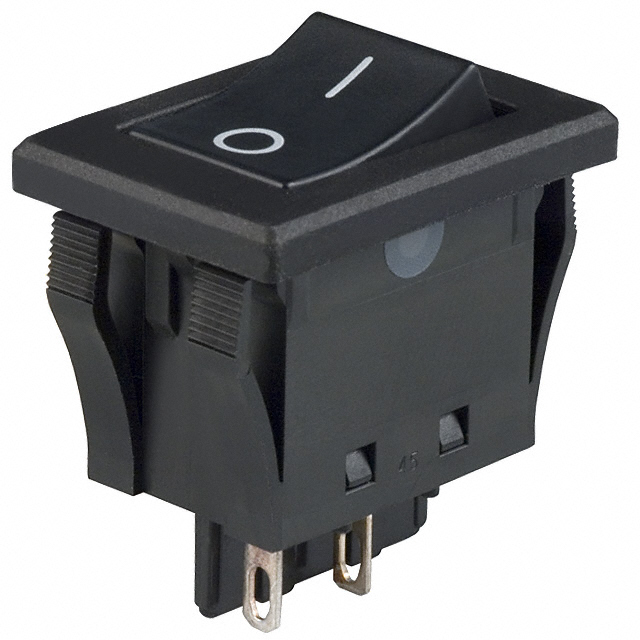

ActiveROCKER SWITCH, ON-NONE-OFF, SPST, NON ILLUMINATED, PANEL MOUNT, BLACK, JW SERIES
Deep-Dive with AI
Search across all available documentation for this part.
JWM11RA2A
ActiveROCKER SWITCH, ON-NONE-OFF, SPST, NON ILLUMINATED, PANEL MOUNT, BLACK, JW SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JWM11RA2A |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Approval Agency | UL, VDE, CSA |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Ingress Protection | Dust Proof |
| Mechanical Life | 25000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 24 mm |
| Panel Cutout Dimensions [y] | 15.4 mm |
| Switch Function | On-Off |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Voltage Rating - AC | 125 V |
JWM11R Series
| Part | Current Rating (Amps) | Electrical Life | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Mounting Type | Ingress Protection | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Features | Color - Actuator/Cap | Voltage Rating - AC | Circuit | Actuator Marking | Approval Agency | Termination Style | Termination Style | Termination Style | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 10 A | 25000 Steps | 25000 Steps | 70 °C | -25 °C | Concave (Curved) | Panel Mount Snap-In | Dust Proof | 24 mm | 15.4 mm | Epoxy Sealed Terminals | Red | 125 V | SPST | No Marking | CSA UL VDE | 0.11 in | Quick Connect Solder | 2.8 mm | On-Off |
NKK Switches | 10 A | 25000 Steps | 25000 Steps | 70 °C | -25 °C | Concave (Curved) | Panel Mount Snap-In | Dust Proof | 24 mm | 15.4 mm | Epoxy Sealed Terminals | Red | 125 V | SPST | O I | CSA UL VDE | 0.11 in | Quick Connect Solder | 2.8 mm | On-Off |
NKK Switches | 10 A | 25000 Steps | 25000 Steps | 70 °C | -25 °C | Concave (Curved) | Panel Mount Snap-In | Dust Proof | 24 mm | 15.4 mm | Epoxy Sealed Terminals | Ivory | 125 V | SPST | O - | CSA UL VDE | 0.11 in | Quick Connect Solder | 2.8 mm | On-Off |
NKK Switches | 10 A | 25000 Steps | 25000 Steps | 70 °C | -25 °C | Concave (Curved) | Panel Mount Snap-In | Dust Proof | 24 mm | 15.4 mm | Epoxy Sealed Terminals | Black | 125 V | SPST | O - | CSA UL VDE | 0.11 in | Quick Connect Solder | 2.8 mm | On-Off |
NKK Switches | 10 A | 25000 Steps | 25000 Steps | 70 °C | -25 °C | Concave (Curved) | Panel Mount Snap-In | Dust Proof | 24 mm | 15.4 mm | Epoxy Sealed Terminals | Black | 125 V | SPST | O I | CSA UL VDE | 0.11 in | Quick Connect Solder | 2.8 mm | On-Off |
NKK Switches | 10 A | 25000 Steps | 25000 Steps | 70 °C | -25 °C | Concave (Curved) | Panel Mount Snap-In | Dust Proof | 24 mm | 15.4 mm | Epoxy Sealed Terminals | Black | 125 V | SPST | O - | CSA UL VDE | 0.11 in | Quick Connect Solder | 2.8 mm | On-Off |
NKK Switches | 10 A | 25000 Steps | 25000 Steps | 70 °C | -25 °C | Concave (Curved) | Panel Mount Snap-In | Dust Proof | 24 mm | 15.4 mm | Epoxy Sealed Terminals | Ivory | 125 V | SPST | No Marking | CSA UL VDE | 0.11 in | Quick Connect Solder | 2.8 mm | On-Off |
NKK Switches | 10 A | 25000 Steps | 25000 Steps | 70 °C | -25 °C | Concave (Curved) | Panel Mount Snap-In | Dust Proof | 24 mm | 15.4 mm | Black | 125 V | SPST | O I | CSA UL VDE | Wire Leads | On-Off | |||
NKK Switches | 10 A | 25000 Steps | 25000 Steps | 70 °C | -25 °C | Concave (Curved) | Panel Mount Snap-In | Dust Proof | 24 mm | 15.4 mm | Epoxy Sealed Terminals | 125 V | SPST | No Marking | CSA UL VDE | 0.11 in | Quick Connect Solder | 2.8 mm | On-Off | |
NKK Switches | 10 A | 25000 Steps | 25000 Steps | 70 °C | -25 °C | Concave (Curved) | Panel Mount Snap-In | Dust Proof | 24 mm | 15.4 mm | Epoxy Sealed Terminals | Ivory | 125 V | SPST | No Marking | CSA UL VDE | 0.11 in | Quick Connect Solder | 2.8 mm | On-Off |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
JWM11R Series
The JWM11RA2A is a SPST non-illuminated Panel-mount Rocker Switch with ON-None-OFF operation and vertical inscription orientation. It has polyphenylene ether rocker, black polyamide housing. It is designed to handle large inrush current, with high electrical capacity of 10A. It is constructed for dust resistance with interior cover between actuator and contact area.
