JWM11RA1A/UCV-WL

Active

NKK Switches

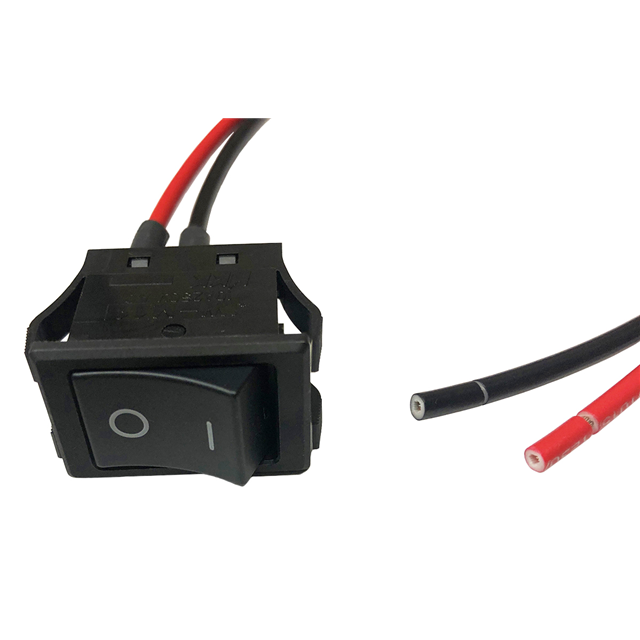

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JWM11RA1A/UCV-WL

Active

NKK Switches

SWITCH ROCKER SPST 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWM11RA1A/UCV-WL

Actuator Marking	O I
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Ingress Protection	Dust Proof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	24 mm
Panel Cutout Dimensions [y]	15.4 mm
Switch Function	On-Off
Termination Style	Wire Leads
Voltage Rating - AC	125 V

JWM11R Series

Part	Current Rating (Amps)	Electrical Life	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mounting Type	Ingress Protection	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Color - Actuator/Cap	Voltage Rating - AC	Circuit	Actuator Marking	Approval Agency	Termination Style	Termination Style	Termination Style	Switch Function
NKK Switches JWM11RCA/UCV	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Red	125 V	SPST	No Marking	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RC1A	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Red	125 V	SPST	O I	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RB2B	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Ivory	125 V	SPST	O -	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RA2H/UCV	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Black	125 V	SPST	O -	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RA1A	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Black	125 V	SPST	O I	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RA2A	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Black	125 V	SPST	O -	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RBA/UCV	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Ivory	125 V	SPST	No Marking	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RA1A/UCV-WL	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm		Black	125 V	SPST	O I	CSA UL VDE		Wire Leads		On-Off
NKK Switches JWM11RHH	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals		125 V	SPST	No Marking	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off
NKK Switches JWM11RBB/UCV	10 A	25000 Steps	25000 Steps	70 °C	-25 °C	Concave (Curved)	Panel Mount Snap-In	Dust Proof	24 mm	15.4 mm	Epoxy Sealed Terminals	Ivory	125 V	SPST	No Marking	CSA UL VDE	0.11 in	Quick Connect Solder	2.8 mm	On-Off

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.39
		10	$ 8.10
		25	$ 7.70

Description

General part information

JWM11R Series

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In
