Description

General part information

09120053 Series

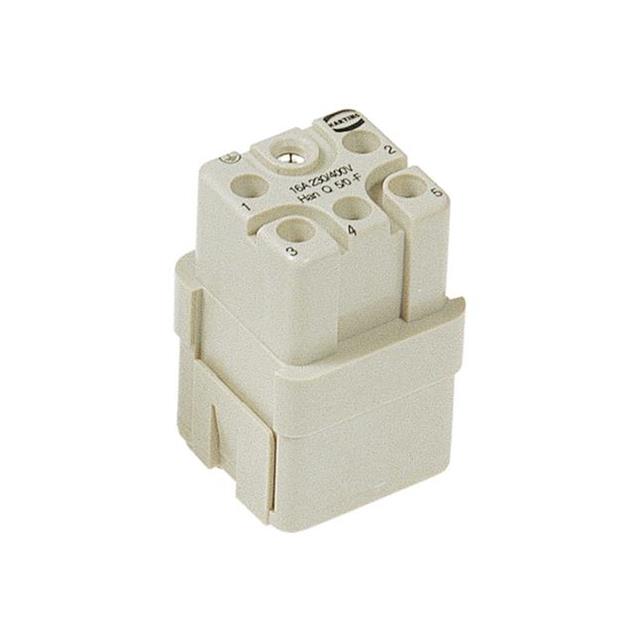

The 09120053101 is a 5-way Han® Rectangular Insert with crimp termination, female type, RAL 7032 (light gray) polycarbonate construction, 0.14 to 2.5mm² wire cross-section.

Technical Specifications

Parameters and characteristics for this part

Specification	09120053101

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® E
Current Rating	16 A
Gender	Female
Housing Material	PC, Polycarbonate
Material Flammability Rating	UL94 V-0
Number of Positions	5
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Size	3A
Termination Style	Crimp
Voltage Rating	600 V

09120053 Series

Part	Termination Style	Number of Positions	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Gender	Current Rating	Size	Connector Type	Housing Material	Material Flammability Rating	Color
HARTING 09120053101	Crimp	5	600 V	125 °C	-40 °C	Han® E	Female	16 A	3A	Insert without Contacts	PC Polycarbonate	UL94 V-0	Gray
HARTING 09120053001	Crimp	5	600 V	125 °C	-40 °C	Han® E	Male	16 A	3A	Insert without Contacts	PC Polycarbonate	UL94 V-0	Gray
HARTING 09120053004	Crimp	5	400 V	125 °C	-40 °C	Han® E	Male	16 A	3A	Insert without Contacts	PC Polycarbonate	UL94 V-0	Gray
