09120053004

Active

HARTING Technology Group

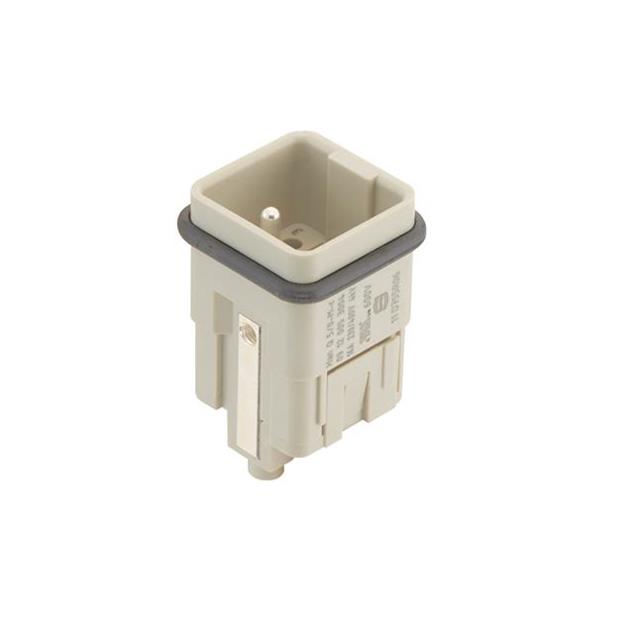

HEAVY DUTY CONNECTOR, HAN-Q SERIES, INSERT, 5+PE CONTACTS, PLUG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-Q SERIES, INSERT, 5+PE CONTACTS, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	09120053004

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® E
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Crimp
Voltage Rating	400 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Housing Material	Material Flammability Rating	Gender	Voltage Rating	Contact Type	Connector Type	Color	Current Rating (Amps)	Size
HARTING Technology Group 09120053104	125 °C	-40 °C	Crimp	Polycarbonate (PC)	UL94 V-0	Female	400 V	Han® E	Insert without Contacts	Gray	16 A	3 A
HARTING Technology Group 09120053101	125 °C	-40 °C	Crimp	Polycarbonate (PC)	UL94 V-0	Female	600 V	Han® E	Insert without Contacts	Gray	16 A	3 A
HARTING Technology Group 09120053001	125 °C	-40 °C	Crimp	Polycarbonate (PC)	UL94 V-0	Male	600 V	Han® E	Insert without Contacts	Gray	16 A	3 A
HARTING Technology Group 09120053004	125 °C	-40 °C	Crimp	Polycarbonate (PC)	UL94 V-0	Male	400 V	Han® E	Insert without Contacts	Gray	16 A	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 5 Position Crimp
