6ED10522CC080BA1

Obsolete

Siemens

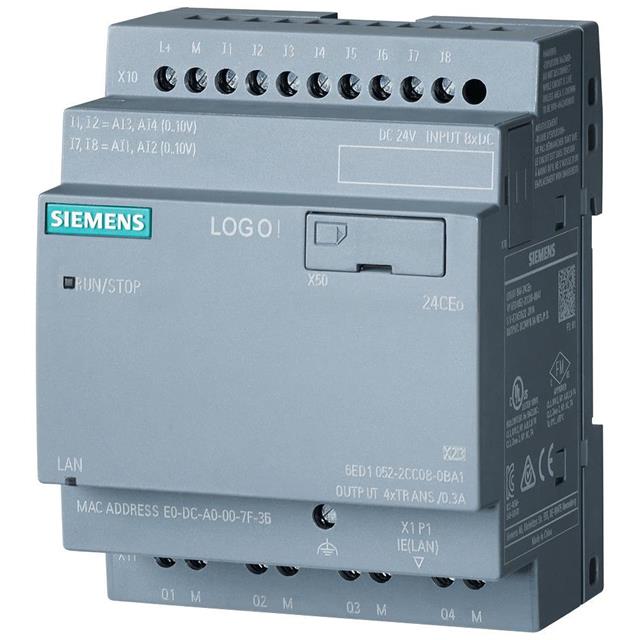

LOGO 24CEO. 8DI(4AI)/4DO. 400 BL

Search across all available documentation for this part.

Obsolete

Siemens

LOGO 24CEO. 8DI(4AI)/4DO. 400 BL

Technical Specifications

Parameters and characteristics for this part

Specification	6ED10522CC080BA1

Approval Agency	CE, CSA, UL, FM
Communications	Ethernet
Display Type	No Display
Mounting Type	DIN Rail
Number of Inputs and Type [custom]	8
Number of Inputs and Type [custom]	Digital
Number of Outputs and Type [custom]	4
Number of Outputs and Type [custom]	Solid State
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Software	LOGO! SOFT Comfort
Voltage - Supply [Max]	28.8 VDC
Voltage - Supply [Min]	20.4 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Software	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Mounting Type	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Communications	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Approval Agency	Voltage - Supply	Number of Outputs and Type [custom]
Siemens 6ED10522HB080BA2
Siemens 6ED10522MD080BA2
Siemens 6ED10522MD080BA1	55 °C	-20 C	LOGO! SOFT Comfort	8	Digital	4	Relay	DIN Rail	No Display	28.8 VDC	10.8 VDC	Ethernet
Siemens 6ED10522CC080BA2	55 °C	-20 C	Soft Comfort 8.2			4		DIN Rail				Ethernet	4	4	CE FM UL	24 VDC	Solid State
Siemens 6ED10522HB080BA1	55 °C	-20 C	LOGO! SOFT Comfort	8	Digital	4	Relay	DIN Rail	No Display	28.8 VDC	20.4 V	Ethernet			CE CSA FM UL
Siemens 6ED10522CC080BA1	55 °C	-20 C	LOGO! SOFT Comfort	8	Digital	4		DIN Rail	No Display	28.8 VDC	20.4 V	Ethernet			CE CSA FM UL		Solid State
Siemens 6ED10522FB080BA1	55 °C	-20 C		8	Digital	4	Relay	DIN Rail	No Display	253 VDC	100 VDC	Ethernet			CE CSA UL
Siemens 6ED10522CC080BA0				8	Digital	4			No Display			Ethernet				24 VDC	Solid State

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Programmable Logic Controller (PLC) DIN Rail 20.4 ~ 28.8VDC

Technical documentation and resources
