6ED10522MD080BA1

Obsolete

Siemens

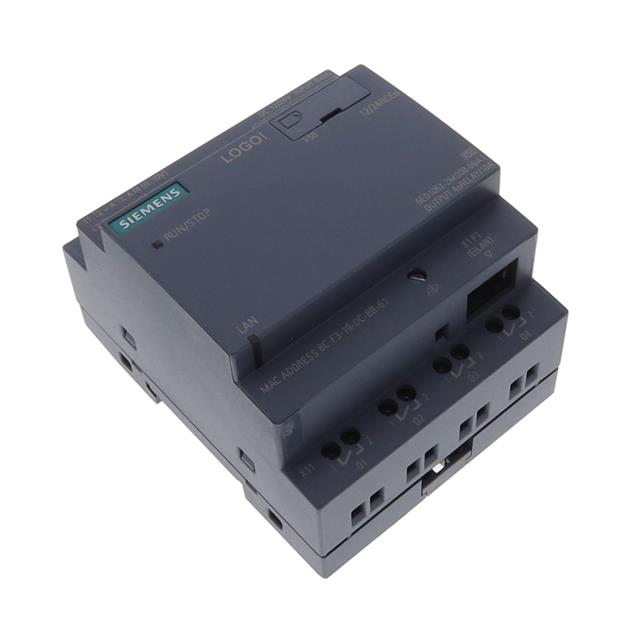

LOGO 12/24RCEO. 8DI(4AI)/4DO.400

Search across all available documentation for this part.

Obsolete

Siemens

LOGO 12/24RCEO. 8DI(4AI)/4DO.400

Technical Specifications

Parameters and characteristics for this part

Specification	6ED10522MD080BA1

Communications	Ethernet
Display Type	No Display
Mounting Type	DIN Rail
Number of Inputs and Type [custom]	8
Number of Inputs and Type [custom]	Digital
Number of Outputs and Type [custom]	4
Number of Outputs and Type [custom]	Relay
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Software	LOGO! SOFT Comfort
Voltage - Supply [Max]	28.8 VDC
Voltage - Supply [Min]	10.8 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Software	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Mounting Type	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Communications	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Approval Agency	Voltage - Supply	Number of Outputs and Type [custom]
Siemens 6ED10522HB080BA2
Siemens 6ED10522MD080BA2
Siemens 6ED10522MD080BA1	55 °C	-20 C	LOGO! SOFT Comfort	8	Digital	4	Relay	DIN Rail	No Display	28.8 VDC	10.8 VDC	Ethernet
Siemens 6ED10522CC080BA2	55 °C	-20 C	Soft Comfort 8.2			4		DIN Rail				Ethernet	4	4	CE FM UL	24 VDC	Solid State
Siemens 6ED10522HB080BA1	55 °C	-20 C	LOGO! SOFT Comfort	8	Digital	4	Relay	DIN Rail	No Display	28.8 VDC	20.4 V	Ethernet			CE CSA FM UL
Siemens 6ED10522CC080BA1	55 °C	-20 C	LOGO! SOFT Comfort	8	Digital	4		DIN Rail	No Display	28.8 VDC	20.4 V	Ethernet			CE CSA FM UL		Solid State
Siemens 6ED10522FB080BA1	55 °C	-20 C		8	Digital	4	Relay	DIN Rail	No Display	253 VDC	100 VDC	Ethernet			CE CSA UL
Siemens 6ED10522CC080BA0				8	Digital	4			No Display			Ethernet				24 VDC	Solid State

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Programmable Logic Controller (PLC) DIN Rail 10.8 ~ 28.8VDC

Technical documentation and resources
