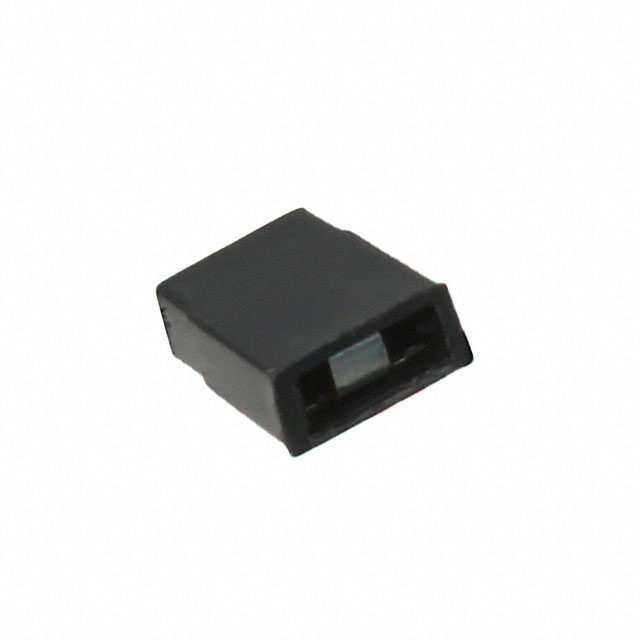

M7567-05
ActiveHarwin Inc.
JUMPER SOCKET SHORTING
Deep-Dive with AI
Search across all available documentation for this part.
M7567-05
ActiveHarwin Inc.
JUMPER SOCKET SHORTING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M7567-05 |
|---|---|
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.13 µm |
| Contact Finish Thickness | 5.11 µin |
| Current Rating (Amps) | 3 A |
| Gender | Female Sockets |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions or Pins (Grid) [custom] | 1 x 2 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Type | Open Top |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.34 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.16 | |||
| 3000 | $ 0.15 | |||
Description
General part information
M7567 Series
2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold
