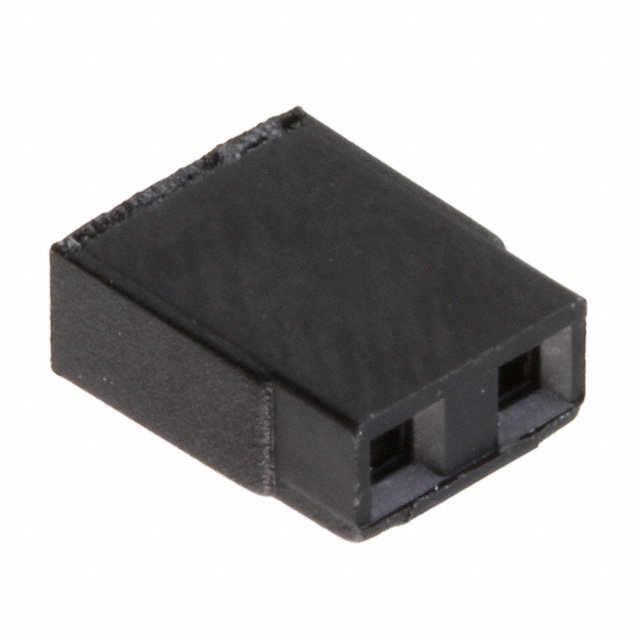

M7567-46

Active

Harwin Inc.

JUMPER SOCKET, 2WAY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

JUMPER SOCKET, 2WAY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M7567-46

Color	Black
Contact Finish	Tin
Contact Finish Thickness	3 µm
Contact Finish Thickness	118.1 µin
Current Rating (Amps)	3 A
Gender	Female Sockets
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top
Voltage Rating	250 VDC

Part	Material Flammability Rating	Type	Color	Gender	Contact Finish	Current Rating (Amps)	Pitch [x]	Pitch [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness
Harwin Inc. M7567-46	UL94 V-0	Open Top	Black	Female Sockets	Tin	3 A	2.54 mm	0.1 in	1 x 2	2	250 VDC	3 µm	118.1 µin
Harwin Inc. M7567-05	UL94 V-0	Open Top	Black	Female Sockets	Gold	3 A	2.54 mm	0.1 in	1 x 2	2	250 VDC	0.13 µm	5.11 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Tin
