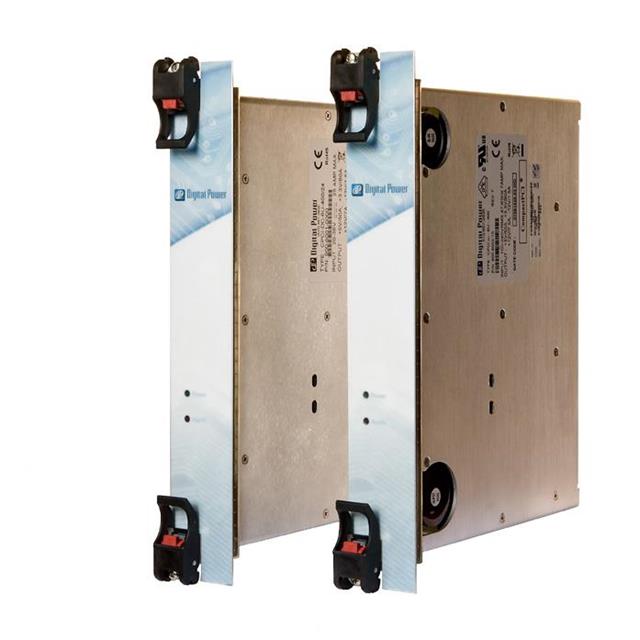

CPCI-AC-6U-600R

Active

Digital Power Corporation

CPCI AC/DC CNVRTR 5V 3.3V +/-12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CPCI-AC-6U-600R

Active

Digital Power Corporation

CPCI AC/DC CNVRTR 5V 3.3V +/-12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPCI-AC-6U-600R	CPCI-AC Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cURus	CE, cURus
Current - Output 1	70 A	30 - 70 A
Current - Output 2	70 A	40 - 70 A
Current - Output 3	-	5 A
Current - Output 4	1.5 A	1 - 1.5 A
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, Load Sharing, PFC	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, Load Sharing, PFC
Minimum Load Required	False	False
Mounting Type	Compact PCI®	Compact PCI®
Number of Outputs	4	4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-5 °C	-5 °C
Power (Watts)	683 W	354 - 733 W
Size / Dimension [x]	261.9 mm	169.4 - 261.9 mm
Size / Dimension [x]	10.31 in	6.67 - 10.31 in
Size / Dimension [y]	169.6 mm	100 - 169.6 mm
Size / Dimension [y]	6.68 "	3.94 - 6.68 "
Size / Dimension [z]	40.3 mm	40.3 - 40.6 mm
Size / Dimension [z]	1.59 "	1.59 - 1.6 "
Standard Number	60950-1	60950-1
Type	Enclosed	Enclosed
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output 1	5 V	5 V
Voltage - Output 2	3.3 V	3.3 V
Voltage - Output 3	12 V	12 V

CPCI-AC Series

CPCI AC/DC CNVRTR 5V 3.3V +/-12V

Part	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Number of Outputs	Type	Standard Number	Current - Output 4	Current - Output 2	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 2	Applications	Voltage - Output 1	Voltage - Output 3	Current - Output 1	Current - Output 3
Digital Power Corporation CPCI-AC-6U-650R	733 W	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input	-5 °C	70 °C	90 VAC	264 VAC	CE, cURus	4	Enclosed	60950-1	1.5 A	70 A	Compact PCI®	261.9 mm	40.3 mm	1.59 "	10.31 in	169.6 mm	6.68 "	3.3 V	ITE (Commercial)	5 V	12 V
Digital Power Corporation CPCI-AC-6U-600R	683 W	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input	-5 °C	70 °C	90 VAC	264 VAC	CE, cURus	4	Enclosed	60950-1	1.5 A	70 A	Compact PCI®	261.9 mm	40.3 mm	1.59 "	10.31 in	169.6 mm	6.68 "	3.3 V	ITE (Commercial)	5 V	12 V	70 A
Digital Power Corporation CPCI-AC-6U-600	683 W	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input	-5 °C	70 °C	90 VAC	264 VAC	CE, cURus	4	Enclosed	60950-1	1.5 A	70 A	Compact PCI®	261.9 mm	40.3 mm	1.59 "	10.31 in	169.6 mm	6.68 "	3.3 V	ITE (Commercial)	5 V	12 V	70 A
Digital Power Corporation CPCI-AC-3U-300R	354 W	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input	-5 °C	70 °C			CE, cURus	4	Enclosed	60950-1	1 A	40 A	Compact PCI®	169.4 mm	40.6 mm	1.6 "	6.67 in	100 mm	3.94 in	3.3 V	ITE (Commercial)	5 V	12 V	30 A	5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 944.49

Description

General part information

CPCI-AC Series

Enclosed AC DC Converters 4 Output 5V 3.3V 12V -12V 90 ~ 264 VAC Input
