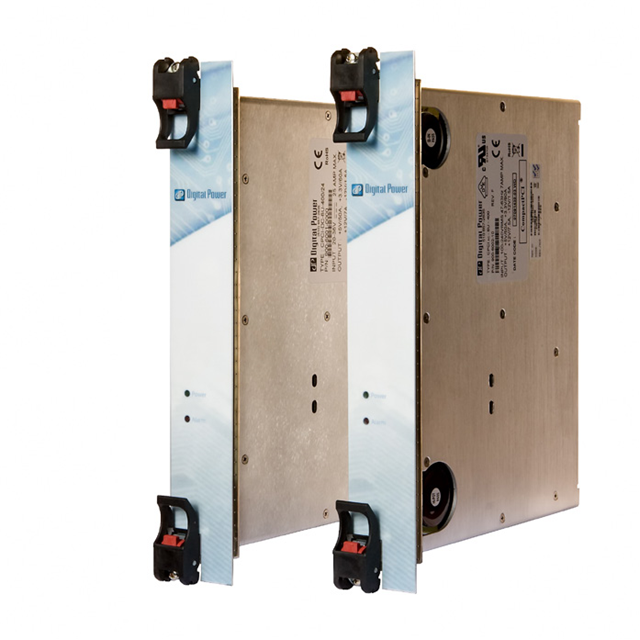

CPCI-AC-6U-600

Active

Digital Power Corporation

AC/DC CNVRTR 5V 3.3V +/-12V 683W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CPCI-AC-6U-600

Active

Digital Power Corporation

AC/DC CNVRTR 5V 3.3V +/-12V 683W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CPCI-AC Series

Enclosed AC DC Converters 4 Output 5V 3.3V 12V -12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPCI-AC-6U-600	CPCI-AC Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cURus	CE, cURus
Current - Output 1	70 A	30 - 70 A
Current - Output 2	70 A	40 - 70 A
Current - Output 3	-	5 A
Current - Output 4	1.5 A	1 - 1.5 A
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, Load Sharing, PFC	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, Load Sharing, PFC
Minimum Load Required	False	False
Mounting Type	Compact PCI®	Compact PCI®
Number of Outputs	4	4
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-5 °C	-5 °C
Power (Watts)	683 W	354 - 733 W
Size / Dimension [x]	261.9 mm	169.4 - 261.9 mm
Size / Dimension [x]	10.31 in	6.67 - 10.31 in
Size / Dimension [y]	169.6 mm	100 - 169.6 mm
Size / Dimension [y]	6.68 "	3.94 - 6.68 "
Size / Dimension [z]	40.3 mm	40.3 - 40.6 mm
Size / Dimension [z]	1.59 "	1.59 - 1.6 "
Standard Number	60950-1	60950-1
Type	Enclosed	Enclosed
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output 1	5 V	5 V
Voltage - Output 2	3.3 V	3.3 V
Voltage - Output 3	12 V	12 V

CPCI-AC Series

CPCI AC/DC CNVRTR 5V 3.3V +/-12V

Part	Power (Watts)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Number of Outputs	Type	Standard Number	Current - Output 4	Current - Output 2	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 2	Applications	Voltage - Output 1	Voltage - Output 3	Current - Output 1	Current - Output 3
Digital Power Corporation CPCI-AC-6U-650R	733 W	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input	-5 °C	70 °C	90 VAC	264 VAC	CE, cURus	4	Enclosed	60950-1	1.5 A	70 A	Compact PCI®	261.9 mm	40.3 mm	1.59 "	10.31 in	169.6 mm	6.68 "	3.3 V	ITE (Commercial)	5 V	12 V
Digital Power Corporation CPCI-AC-6U-600R	683 W	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input	-5 °C	70 °C	90 VAC	264 VAC	CE, cURus	4	Enclosed	60950-1	1.5 A	70 A	Compact PCI®	261.9 mm	40.3 mm	1.59 "	10.31 in	169.6 mm	6.68 "	3.3 V	ITE (Commercial)	5 V	12 V	70 A
Digital Power Corporation CPCI-AC-6U-600	683 W	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input	-5 °C	70 °C	90 VAC	264 VAC	CE, cURus	4	Enclosed	60950-1	1.5 A	70 A	Compact PCI®	261.9 mm	40.3 mm	1.59 "	10.31 in	169.6 mm	6.68 "	3.3 V	ITE (Commercial)	5 V	12 V	70 A
Digital Power Corporation CPCI-AC-3U-300R	354 W	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input	-5 °C	70 °C			CE, cURus	4	Enclosed	60950-1	1 A	40 A	Compact PCI®	169.4 mm	40.6 mm	1.6 "	6.67 in	100 mm	3.94 in	3.3 V	ITE (Commercial)	5 V	12 V	30 A	5 A
