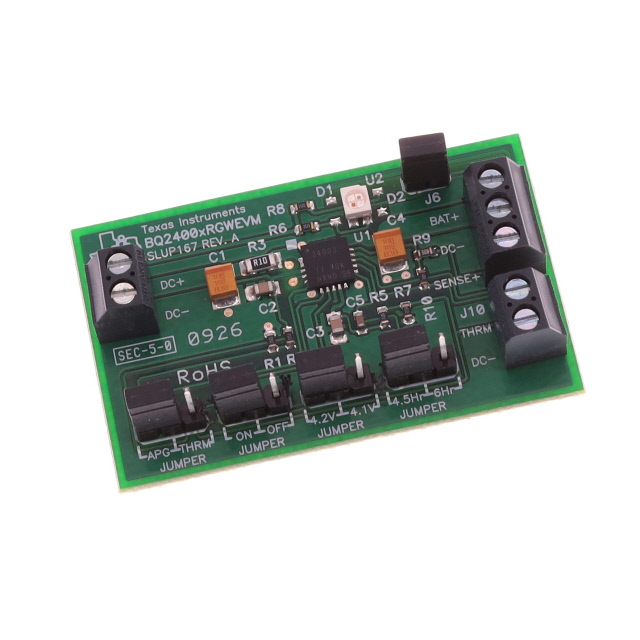

Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24003RGWEVM | BQ24003 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 1.2 A |
| Current - Charging | - | Constant |
| Fault Protection | - | Over Temperature |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 70 ¯C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 0.173 in |
| Package / Case | - | 20-PowerTSSOP, 20-VQFN Exposed Pad |
| Package / Case | - | 4.4 mm |
| Programmable Features | - | Current, Timer |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 20-HTSSOP, 20-VQFN (5x5) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24003RGW | BQ24003RGW |
| Voltage - Supply (Max) | - | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.74 | |
BQ24003 Series
1-cell, 1.2-A, linear Li-ion battery charger with bi-color LED and integrated FET
| Part | Current - Charging | Charge Current - Max [Max] | Fault Protection | Battery Pack Voltage | Number of Cells | Programmable Features | Battery Chemistry | Supplier Device Package | Package / Case [custom] | Package / Case | Package / Case [custom] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Max) [Max] | Supplied Contents | Type | Utilized IC / Part | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24003PWP | Constant | 1.2 A | Over Temperature | 4.2 V | 1 | Current, Timer | Lithium Ion | 20-HTSSOP | 0.173 in | 20-PowerTSSOP | 4.4 mm | Surface Mount | 70 ¯C | -40 °C | 10 V | ||||
Texas Instruments BQ24003RGWEVM | Board(s) | Power Management | BQ24003RGW | Battery Charger | |||||||||||||||
Texas Instruments BQ24003PWPG4 | Constant | 1.2 A | Over Temperature | 4.2 V | 1 | Current, Timer | Lithium Ion | 20-HTSSOP | 0.173 in | 20-PowerTSSOP | 4.4 mm | Surface Mount | 70 ¯C | -40 °C | 10 V | ||||
Texas Instruments BQ24003RGWR | Constant | 1.2 A | Over Temperature | 4.2 V | 1 | Current, Timer | Lithium Ion | 20-VQFN (5x5) | 20-VQFN Exposed Pad | Surface Mount | 70 ¯C | -40 °C | 10 V |
Description
General part information
BQ24003 Series
The bq2400x series ICs are advanced Li-Ion linear charge management devices for highly integrated and space-limited applications. They combine high-accuracy current and voltage regulation; FET pass-transistor and reverse-blocking Schottky; battery conditioning, temperature, or input-power monitoring; charge termination; charge-status indication; and charge timer in a small package.
The bq2400x measures battery temperature using an external thermistor. For safety reasons, the bq2400x inhibits charge until the battery temperature is within the user-defined thresholds. Alternatively, the user can monitor the input voltage to qualify charge. The bq2400x series then charge the battery in three phases: preconditioning, constant current, and constant voltage. If the battery voltage is below the internal low-voltage threshold, the bq2400x uses low-current precharge to condition the battery. A preconditioning timer is provided for additional safety. Following pre-conditioning, the bq2400x applies a constant-charge current to the battery. An external sense-resistor sets the magnitude of the current. The constant-current phase is maintained until the battery reaches the charge-regulation voltage. The bq2400x then transitions to the constant voltage phase. The user can configure the device for cells with either coke or graphite anodes. The accuracy of the voltage regulation is better than ±1% over the operating junction temperature and supply voltage range.
Charge is terminated by maximum time or minimum taper current detection
