A99100-009

Active

Omnetics

CABLE ASSY MICRO-D 9POS 1.5'

Search across all available documentation for this part.

Active

Omnetics

CABLE ASSY MICRO-D 9POS 1.5'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A99100-009	MMDS-009 Series

1st Connector	Receptacle, Female Sockets	Receptacle, Female Sockets
2nd Connector	Individual Wire Leads	Individual Wire Leads
Color	Multiple, Individual	Multiple, Individual
Connector Style	-	Micro-D, D-Type
Connector Type	-	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	-	Stamped
Contact Material	-	Copper Alloy
Contact Type	-	Signal
Current Rating (Amps)	-	3 A
Dielectric Material	-	Thermoplastic
Flange Feature	-	Housing/Shell (Unthreaded)
Length [x]	457.2 mm	457.2 mm
Length [x]	1.5 ft	1.5 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	9	9
Number of Rows	-	2
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Shell Material, Finish	-	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout	-	0.05
Shell Size, Connector Layout	-	0.05
Shielding	Unshielded	Unshielded
Type	D-Type, Micro-D	D-Type, Micro-D

CABLE ASSY MICRO-D 9POS 1.5'

Part	1st Connector	Shielding	Type	2nd Connector	Number of Positions	Length [x]	Length [x]	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Mounting Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Current Rating (Amps)	Shell Material, Finish	Contact Form	Connector Type	Contact Type	Connector Style	Number of Rows
Omnetics A99100-009	Female Sockets, Receptacle	Unshielded	D-Type, Micro-D	Individual Wire Leads	9	457.2 mm	1.5 ft	Individual, Multiple	Gold	50 µin	1.27 µm
Omnetics A99000-009					9				Gold	50 µin	1.27 µm	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Thermoplastic	-55 °C	125 °C	0.05	0.05	Copper Alloy	3 A	Aluminum, Electroless, Nickel Plated	Stamped	Receptacle, Female Sockets	Signal	D-Type, Micro-D	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

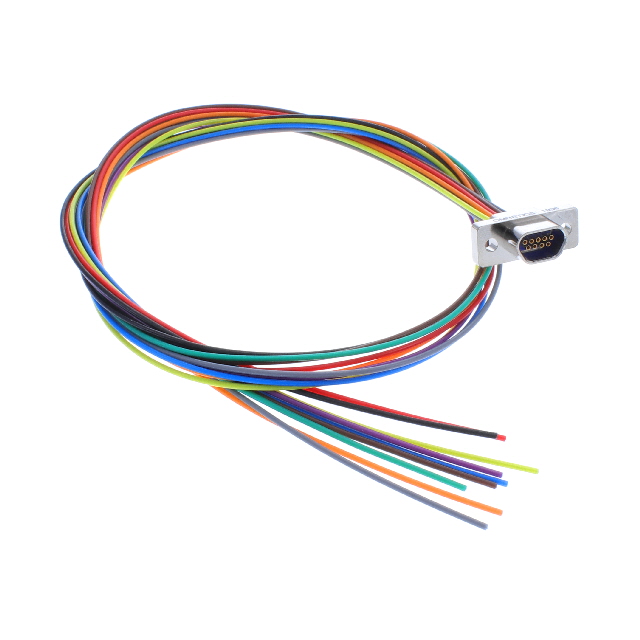

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 1.50' (457.20mm) Receptacle, Female Sockets to Individual Wire Leads Unshielded
