A99000-009

Active

Omnetics

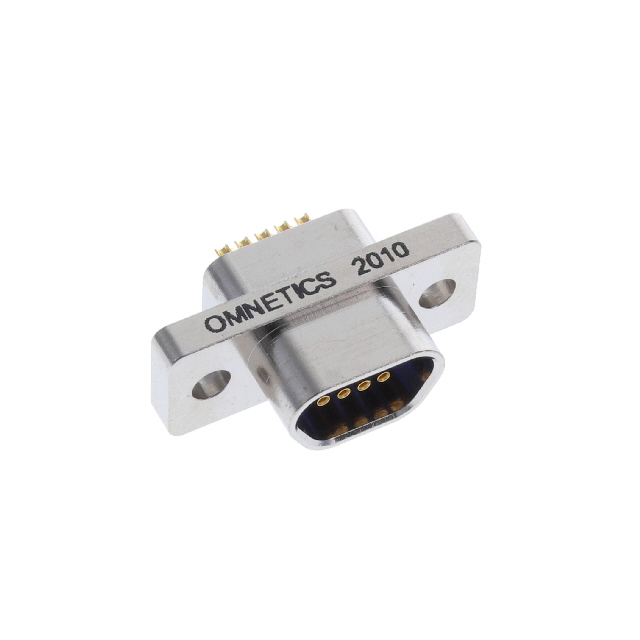

CONN MICRO-D RCPT 9POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D RCPT 9POS SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Type, Micro-D Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	A99000-009	MMDS-009 Series

1st Connector	-	Receptacle, Female Sockets
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	9	9
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CABLE ASSY MICRO-D 9POS 1.5'

Part	1st Connector	Shielding	Type	2nd Connector	Number of Positions	Length [x]	Length [x]	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Mounting Type	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Current Rating (Amps)	Shell Material, Finish	Contact Form	Connector Type	Contact Type	Connector Style	Number of Rows
Omnetics A99100-009	Female Sockets, Receptacle	Unshielded	D-Type, Micro-D	Individual Wire Leads	9	457.2 mm	1.5 ft	Individual, Multiple	Gold	50 µin	1.27 µm
Omnetics A99000-009					9				Gold	50 µin	1.27 µm	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Thermoplastic	-55 °C	125 °C	0.05	0.05	Copper Alloy	3 A	Aluminum, Electroless, Nickel Plated	Stamped	Receptacle, Female Sockets	Signal	D-Type, Micro-D	2
