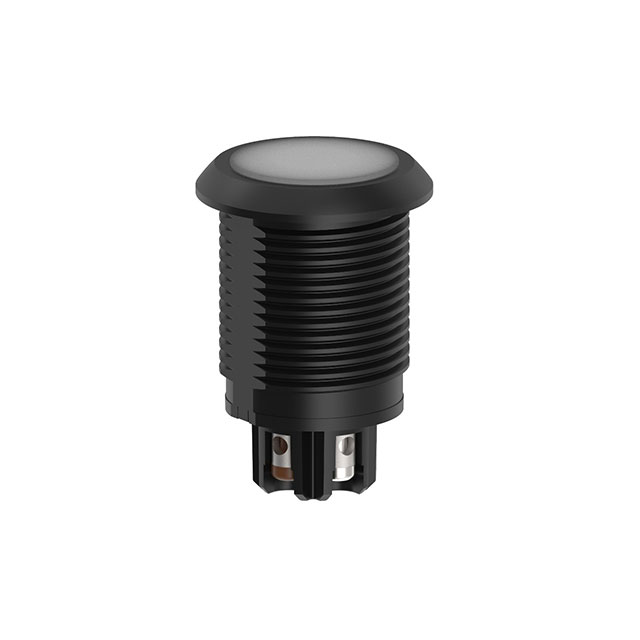

S22L2SRGB7T

Active

BANNER ENGINEERING

MULTICOLOUR PANEL INDICATORS, BLUE, CYAN, GREEN, MAGENTA, RED, YELLOW, WHITE, 22 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

S22L2SRGB7T

Active

BANNER ENGINEERING

MULTICOLOUR PANEL INDICATORS, BLUE, CYAN, GREEN, MAGENTA, RED, YELLOW, WHITE, 22 MM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S22L2SRGB7T

Current	70 mA
Ingress Protection	IP69K, IP67, IP66
Lamp Color	Blue, White, Cool, Red, Yellow, Green
Lens Transparency	Diffused
Millicandela Rating	1.2 mcd, 1.9 mcd, 0.8 mcd, 2 mcd, 0.3 mcd, 2.5 mcd
Panel Cutout Dimensions	0.866 in
Panel Cutout Dimensions	22 mm
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Screw Terminal
Type	LED
Voltage [Max]	30 V
Voltage [Min]	10 V

S22L2SRGB Series

Part	Type	Termination Style	Voltage [Max]	Voltage [Min]	Current	Ingress Protection	Lens Transparency	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Panel Cutout Shape	Millicandela Rating
BANNER ENGINEERING S22L2SRGB14	LED	Wire Leads	30 V	10 V	70 mA	IP66 IP67 IP69K	Diffused	DC	0.866 in	22 mm	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	0.3 mcd	1.9 mcd	1.2 mcd	2.2 mcd	2 mcd	0.9 mcd	1.8 mcd	Round
BANNER ENGINEERING S22L2SRGB14Q	LED	Quick Connect	30 V	10 V	70 mA	IP66 IP67 IP69K	Diffused	DC	0.866 in	22 mm	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	0.3 mcd	1.9 mcd	1.2 mcd	2.2 mcd	2 mcd	0.9 mcd	1.8 mcd	Round
BANNER ENGINEERING S22L2SRGB14T	LED	Screw Terminal	30 V	10 V	70 mA	IP66 IP67 IP69K	Diffused	DC	0.866 in	22 mm	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	0.3 mcd	1.9 mcd	1.2 mcd	2.2 mcd	2 mcd	0.9 mcd	1.8 mcd	Round
BANNER ENGINEERING S22L2SRGB14QP	LED		30 V	10 V	70 mA	IP66 IP67 IP69K	Diffused	DC	0.866 in	22 mm	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	0.3 mcd	1.9 mcd	1.2 mcd	2.2 mcd	2 mcd	0.9 mcd	1.8 mcd	Round
BANNER ENGINEERING S22L2SRGB7T	LED	Screw Terminal	30 V	10 V	70 mA	IP66 IP67 IP69K	Diffused	DC	0.866 in	22 mm	Blue Cool Green Red White Yellow								Round	0.3 mcd 0.8 mcd 1.2 mcd 1.9 mcd 2 mcd 2.5 mcd
BANNER ENGINEERING S22L2SRGB7Q	LED	Quick Connect	30 V	10 V	70 mA	IP66 IP67 IP69K	Diffused	DC	0.866 in	22 mm	Blue Cool Cyan Green Magenta Red White Yellow								Round	0.3 mcd 0.8 mcd 1.2 mcd 1.9 mcd 2 mcd 2.5 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.00
Newark	Each	1	$ 68.59

Description

General part information

S22L2SRGB Series

LED Panel Indicator Blue, Green, Red, White - Cool, Yellow Diffused 10V ~ 30V 70mA Screw Terminal
