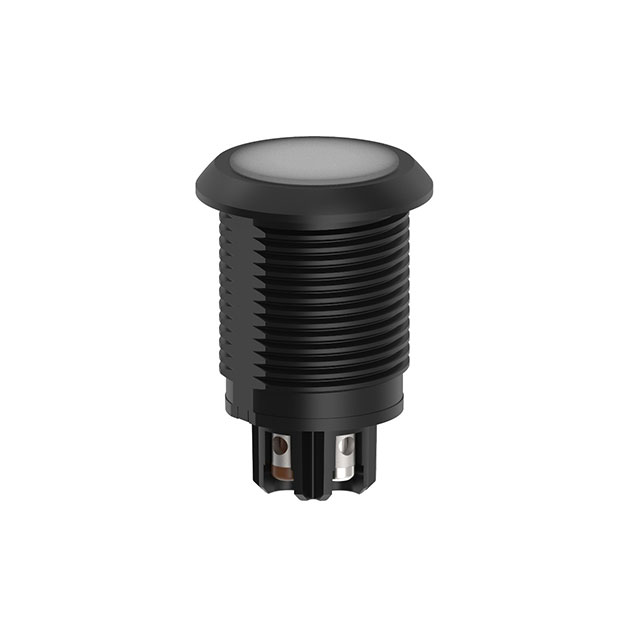

S22L2SRGB14T
ActiveBANNER ENGINEERING
PROG PANEL INDICATOR, MULTICOLOR, 30V
Deep-Dive with AI
Search across all available documentation for this part.
S22L2SRGB14T
ActiveBANNER ENGINEERING
PROG PANEL INDICATOR, MULTICOLOR, 30V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S22L2SRGB14T |
|---|---|
| Current | 70 mA |
| Ingress Protection | IP69K, IP67, IP66 |
| Lamp Color | Blue, Green, Magenta, Amber, Sky Blue, Orange, Lime Green, Violet, Spring Green, Red, Cyan, Rose |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 0.3 mcd |
| Millicandela Rating [custom] | 1.9 mcd |
| Millicandela Rating [custom] | 1.2 mcd |
| Millicandela Rating [custom] | 2.2 mcd |
| Millicandela Rating [custom] | 2 mcd |
| Millicandela Rating [custom] | 0.9 mcd |
| Millicandela Rating [custom] | 1.8 mcd |
| Panel Cutout Dimensions | 0.866 in |
| Panel Cutout Dimensions | 22 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Screw Terminal |
| Type | LED |
| Voltage [Max] | 30 V |
| Voltage [Min] | 10 V |
S22L2SRGB Series
| Part | Type | Termination Style | Voltage [Max] | Voltage [Min] | Current | Ingress Protection | Lens Transparency | Ratings | Panel Cutout Dimensions | Panel Cutout Dimensions | Lamp Color | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Panel Cutout Shape | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BANNER ENGINEERING | LED | Wire Leads | 30 V | 10 V | 70 mA | IP66 IP67 IP69K | Diffused | DC | 0.866 in | 22 mm | Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet | 0.3 mcd | 1.9 mcd | 1.2 mcd | 2.2 mcd | 2 mcd | 0.9 mcd | 1.8 mcd | Round | |
BANNER ENGINEERING | LED | Quick Connect | 30 V | 10 V | 70 mA | IP66 IP67 IP69K | Diffused | DC | 0.866 in | 22 mm | Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet | 0.3 mcd | 1.9 mcd | 1.2 mcd | 2.2 mcd | 2 mcd | 0.9 mcd | 1.8 mcd | Round | |
BANNER ENGINEERING | LED | Screw Terminal | 30 V | 10 V | 70 mA | IP66 IP67 IP69K | Diffused | DC | 0.866 in | 22 mm | Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet | 0.3 mcd | 1.9 mcd | 1.2 mcd | 2.2 mcd | 2 mcd | 0.9 mcd | 1.8 mcd | Round | |
BANNER ENGINEERING | LED | 30 V | 10 V | 70 mA | IP66 IP67 IP69K | Diffused | DC | 0.866 in | 22 mm | Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet | 0.3 mcd | 1.9 mcd | 1.2 mcd | 2.2 mcd | 2 mcd | 0.9 mcd | 1.8 mcd | Round | ||
BANNER ENGINEERING | LED | Screw Terminal | 30 V | 10 V | 70 mA | IP66 IP67 IP69K | Diffused | DC | 0.866 in | 22 mm | Blue Cool Green Red White Yellow | Round | 0.3 mcd 0.8 mcd 1.2 mcd 1.9 mcd 2 mcd 2.5 mcd | |||||||
BANNER ENGINEERING | LED | Quick Connect | 30 V | 10 V | 70 mA | IP66 IP67 IP69K | Diffused | DC | 0.866 in | 22 mm | Blue Cool Cyan Green Magenta Red White Yellow | Round | 0.3 mcd 0.8 mcd 1.2 mcd 1.9 mcd 2 mcd 2.5 mcd |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S22L2SRGB Series
LED Panel Indicator Amber, Blue, Cyan, Green, Lime Green, Magenta, Rose, Sky Blue, Spring Green, Orange, Red, Violet Diffused 10V ~ 30V 70mA Screw Terminal
