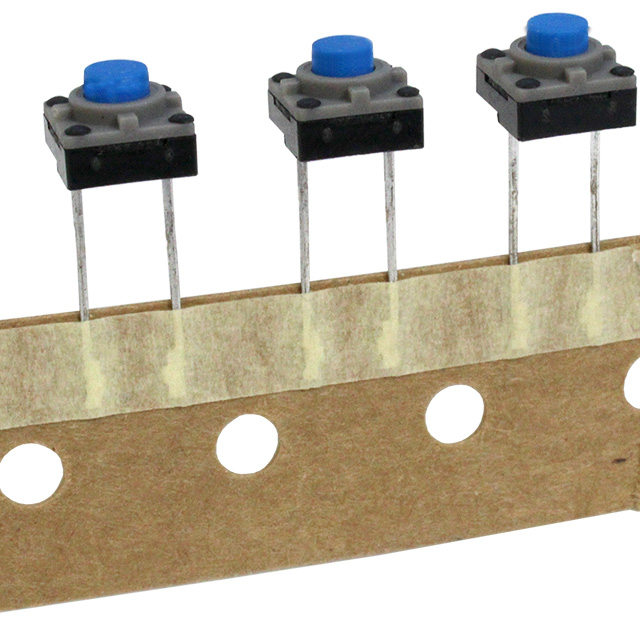

CR1104S7.0LF260
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 48V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CR1104S7.0LF260
ActiveCIT Relay and Switch
SWITCH TACTILE SPST-NO 0.05A 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CR1104S7.0LF260 |
|---|---|
| Actuator Height off PCB, Vertical [z] | 7 mm |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 48 VDC |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Force | 260 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 7.2 mm |
| Outline [y] | 7.2 mm |
| Switch Function | Off-Mom |
| Switch Travel [custom] | 0.3 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.37 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.29 | |||
| Tape & Box (TB) | 800 | $ 0.27 | ||
| 1600 | $ 0.24 | |||
| 2400 | $ 0.23 | |||
| 5600 | $ 0.21 | |||
| 20000 | $ 0.20 | |||
Description
General part information
CR1104S Series
Tactile Switch SPST-NO Top Actuated Through Hole
