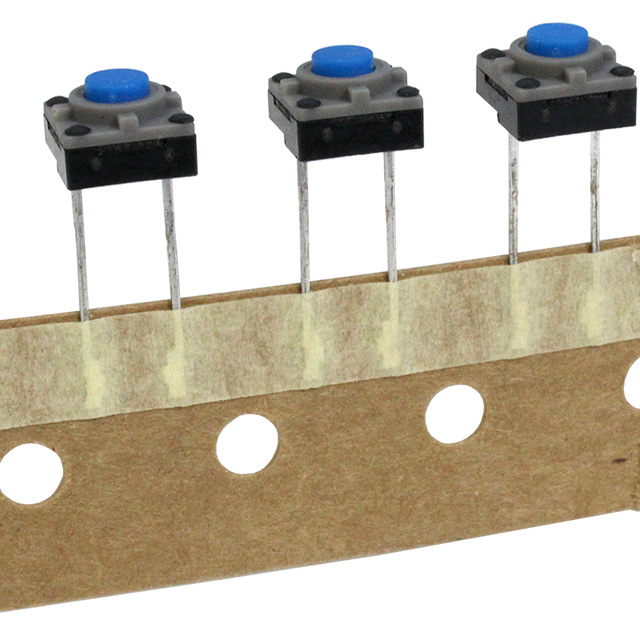

Specification	CR1104S5.0LF200

Actuator Height off PCB (Vertical)	5 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating (Current)	0.05 A
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	200 gf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Outline Length	7.2 mm
Outline Width	7.2 mm
Switch Function	Off-Mom
Switch Travel	0.3 mm
Termination Style	PC Pin

CR1104S Series

Part	Switch Travel	Actuator Material	Contact Rating (Current)	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Height off PCB (Vertical)	Actuator Orientation	Outline Width	Outline Length	Circuit	Termination Style	Mounting Type	Actuator Type	Switch Function	Illumination	Operating Force
CIT Relay and Switch CR1104S7.0LF200	0.3 mm	Polybutylene Terephthalate (PBT)	0.05 A	-40 °C	85 °C	7 mm	Top Actuated	7.2 mm	7.2 mm	SPST-NO	PC Pin	Through Hole	Standard	Off-Mom	Non-Illuminated	200 gf
CIT Relay and Switch CR1104S5.0LF200	0.3 mm	Polybutylene Terephthalate (PBT)	0.05 A	-40 °C	85 °C	5 mm	Top Actuated	7.2 mm	7.2 mm	SPST-NO	PC Pin	Through Hole	Standard	Off-Mom	Non-Illuminated	200 gf
CIT Relay and Switch CR1104S7.0LF260	0.3 mm	Polybutylene Terephthalate (PBT)	0.05 A	-40 °C	85 °C	7 mm	Top Actuated	7.2 mm	7.2 mm	SPST-NO	PC Pin	Through Hole	Standard	Off-Mom	Non-Illuminated	260 gf
CIT Relay and Switch CR1104S4.3LF260	0.3 mm	Polybutylene Terephthalate (PBT)	0.05 A	-40 °C	85 °C	4.3 mm	Top Actuated	7.2 mm	7.2 mm	SPST-NO	PC Pin	Through Hole	Standard	Off-Mom	Non-Illuminated	260 gf
