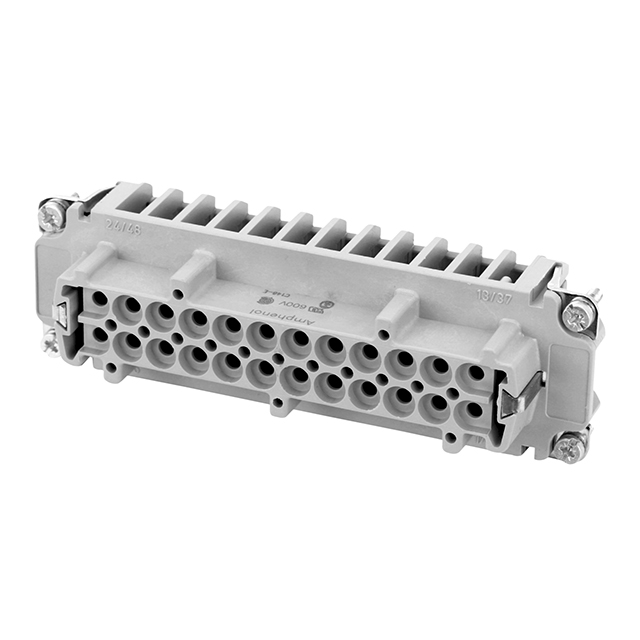

C14610B0245001

Active

Amphenol Tuchel Industrial

INSERT FEMALE 24POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 24POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610B0245001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	heavy\|mate®, C146 E, EE
Current Rating (Amps)	10 A
Gender	Female
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E24
Termination Style	Crimp
Voltage Rating	600 V

Part	Color	Material Flammability Rating	Current Rating (Amps)	Connector Type	Contact Type	Size	Gender	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Finish	Contact Material
Amphenol Tuchel Industrial C14610B0245001	Gray	UL94 V-0	10 A	Insert without Contacts	heavy\|mate® C146 E EE	E24	Female	600 V	125 °C	-40 °C	Crimp
Amphenol Tuchel Industrial C14610B0241021	Gray	UL94 V-0	10 A			E24	Female	600 V	125 °C	-40 °C	Screw	Silver	Brass
Amphenol Tuchel Industrial C14610B0240021	Gray	UL94 V-0	10 A			E24	Female	600 V	125 °C	-40 °C	Screw	Silver	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 16.48

General part information

Female Insert without Contacts Gray 24+Ground Position Crimp
