C14610B0240021

Active

Amphenol Tuchel Industrial

INSERT FEMALE 24POS+1GND SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 24POS+1GND SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C14610B0240021

Color	Gray
Contact Finish	Silver
Contact Material	Brass
Current Rating (Amps)	10 A
Gender	Female
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E24
Termination Style	Screw
Voltage Rating	600 V

Part	Color	Material Flammability Rating	Current Rating (Amps)	Connector Type	Contact Type	Size	Gender	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Finish	Contact Material
Amphenol Tuchel Industrial C14610B0245001	Gray	UL94 V-0	10 A	Insert without Contacts	heavy\|mate® C146 E EE	E24	Female	600 V	125 °C	-40 °C	Crimp
Amphenol Tuchel Industrial C14610B0241021	Gray	UL94 V-0	10 A			E24	Female	600 V	125 °C	-40 °C	Screw	Silver	Brass
Amphenol Tuchel Industrial C14610B0240021	Gray	UL94 V-0	10 A			E24	Female	600 V	125 °C	-40 °C	Screw	Silver	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.15

General part information

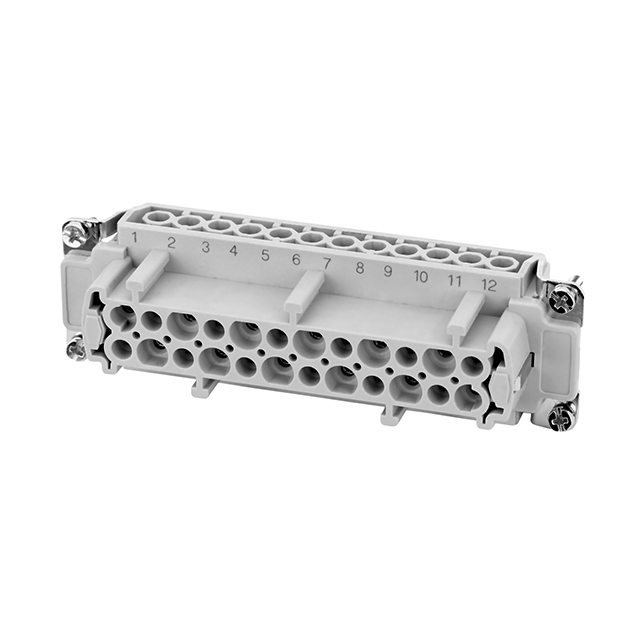

Female Insert Gray 24+Ground Position Screw
