QFSS-064-04.25-L-D-DP

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.635 MM Q2 SHIELDED GROUND PLANE SOCKET STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

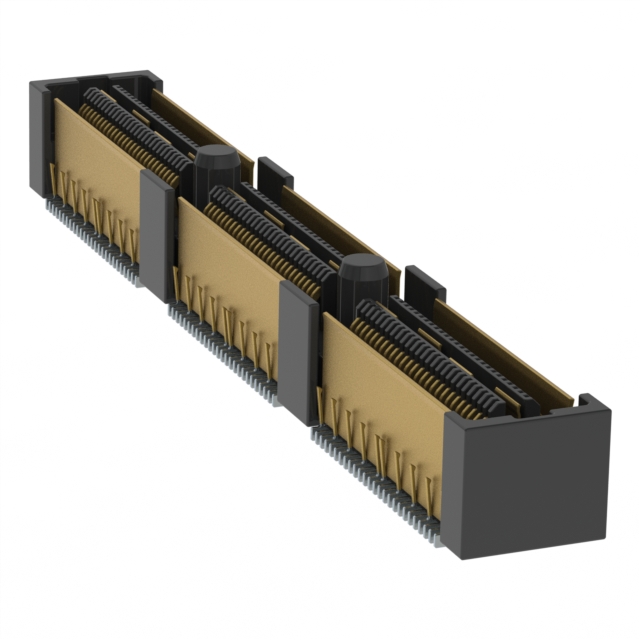

QFSS-064-04.25-L-D-DP

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.635 MM Q2 SHIELDED GROUND PLANE SOCKET STRIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QFSS-064-04.25-L-D-DP

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Shielded, Ground Bus (Plane)
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Positions	128
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QFSS-016 Series

Board to Board & Mezzanine Connectors 0.635 mm Q2 Shielded Ground Plane Socket Strip

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights	Number of Rows	Mounting Type	Contact Finish	Connector Type	Height Above Board	Height Above Board	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions [custom]	Number of Positions
Samtec Inc. QFSS-016-04.25-L-D-DP-PT8	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "	32	16	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Power Pins (16) Shielded
Samtec Inc. QFSS-016-04.25-H-D-DP-PC8	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "	32	16	30 Áin	0.76 Ám	Board Guide Ground Bus (Plane) Power Pins (16) Shielded
Samtec Inc. QFSS-016-04.25-L-D-DP-PC4	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "		8	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	32 positions
Samtec Inc. QFSS-016-04.25-H-D-DP-A	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			30 Áin	0.76 Ám	Board Guide Ground Bus (Plane) Shielded
Samtec Inc. QFSS-016-04.25-L-D-DP-A-BM	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Shielded
Samtec Inc. QFSS-016-04.25-H-D-DP-A-BM	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			30 Áin	0.76 Ám	Board Guide Ground Bus (Plane) Shielded
Samtec Inc. QFSS-016-04.25-L-D-DP-PC8	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "	32	16	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Power Pins (16) Shielded
Samtec Inc. QFSS-016-04.25-L-D-DP-A-P-TR	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Shielded
Samtec Inc. QFSS-064-04.25-L-D-DP	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Shielded		128
Samtec Inc. QFSS-016-04.25-L-D-DP-A-GP	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Shielded
