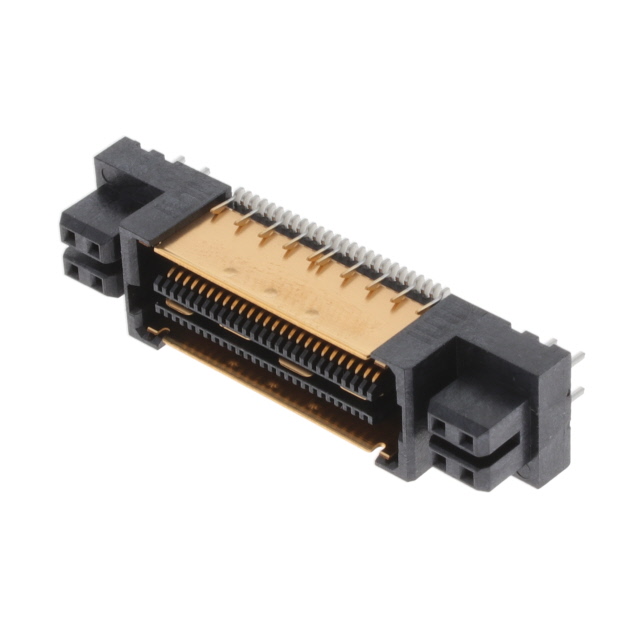

QFSS-016-04.25-L-D-DP-PT8

Active

Samtec Inc.

.635MM DOUBLE ROW SHIELDED TERMI

Deep-Dive with AI

Search across all available documentation for this part.

QFSS-016-04.25-L-D-DP-PT8

Active

Samtec Inc.

.635MM DOUBLE ROW SHIELDED TERMI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QFSS-016-04.25-L-D-DP-PT8

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Ground Bus (Plane), Board Guide, Power Pins (16), Shielded
Height Above Board	7.06 mm
Height Above Board	0.278 "
Mated Stacking Heights	11 mm
Mounting Type	Surface Mount
Number of Positions [custom]	32
Number of Positions [custom]	16
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QFSS-016 Series

Board to Board & Mezzanine Connectors 0.635 mm Q2 Shielded Ground Plane Socket Strip

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights	Number of Rows	Mounting Type	Contact Finish	Connector Type	Height Above Board	Height Above Board	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions [custom]	Number of Positions
Samtec Inc. QFSS-016-04.25-L-D-DP-PT8	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "	32	16	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Power Pins (16) Shielded
Samtec Inc. QFSS-016-04.25-H-D-DP-PC8	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "	32	16	30 Áin	0.76 Ám	Board Guide Ground Bus (Plane) Power Pins (16) Shielded
Samtec Inc. QFSS-016-04.25-L-D-DP-PC4	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "		8	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Power Pins (8) Shielded	32 positions
Samtec Inc. QFSS-016-04.25-H-D-DP-A	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			30 Áin	0.76 Ám	Board Guide Ground Bus (Plane) Shielded
Samtec Inc. QFSS-016-04.25-L-D-DP-A-BM	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Shielded
Samtec Inc. QFSS-016-04.25-H-D-DP-A-BM	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			30 Áin	0.76 Ám	Board Guide Ground Bus (Plane) Shielded
Samtec Inc. QFSS-016-04.25-L-D-DP-PC8	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "	32	16	10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Power Pins (16) Shielded
Samtec Inc. QFSS-016-04.25-L-D-DP-A-P-TR	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Shielded
Samtec Inc. QFSS-064-04.25-L-D-DP	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Shielded		128
Samtec Inc. QFSS-016-04.25-L-D-DP-A-GP	0.64 mm	0.025 in	11 mm	2	Surface Mount	Gold	Differential Pair Array Female	7.06 mm	0.278 "			10 Áin	0.25 Ám	Board Guide Ground Bus (Plane) Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.64

Description

General part information

QFSS-016 Series

Board to Board & Mezzanine Connectors 0.635 mm Q2 Shielded Ground Plane Socket Strip

Documents

Technical documentation and resources

No documents available
