29S211-271L5
ActiveRosenberger

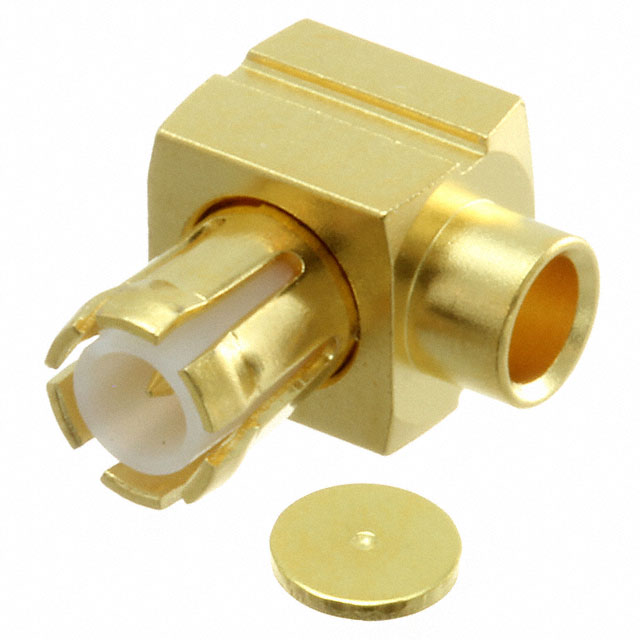

CONN MCX PLUG R/A 50OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
29S211-271L5
ActiveRosenberger
CONN MCX PLUG R/A 50OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 29S211-271L5 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | RG-405 (.085" Semi Rigid) |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Includes | 1 End Cap, 1 Connector |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.22 | |
| 10 | $ 7.40 | |||
| 25 | $ 6.97 | |||
| 50 | $ 6.79 | |||
| 100 | $ 6.61 | |||
| 300 | $ 5.90 | |||
| 500 | $ 5.54 | |||
| 1000 | $ 4.90 | |||
Description
General part information
29S211 Series
MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
