29S211-302L5
ActiveRosenberger
RF MCX CONNECTOR, 1 CONTACT(S), MALE, CABLE MOUNT, CRIMP TERMINAL, LOCKING, PLUG, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
29S211-302L5
ActiveRosenberger
RF MCX CONNECTOR, 1 CONTACT(S), MALE, CABLE MOUNT, CRIMP TERMINAL, LOCKING, PLUG, ROHS COMPLIANT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 29S211-302L5 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | RG-174A, 316, 188A |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |

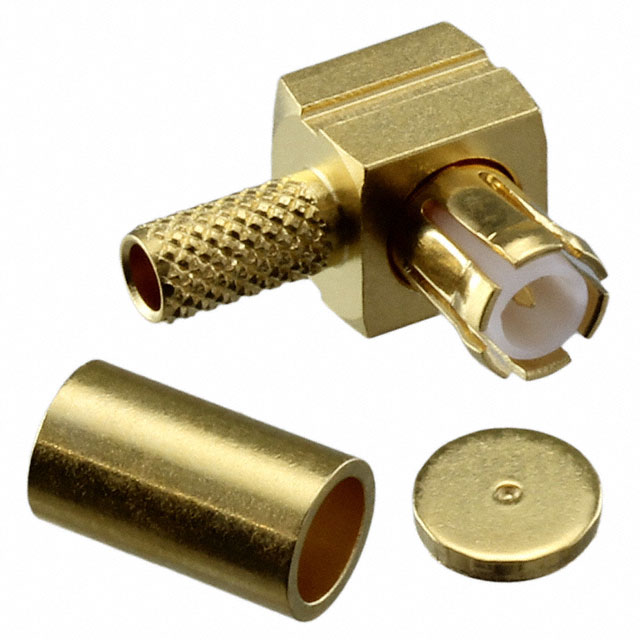

| Includes | 1 Connector, 1 Ferrule, 1 End Cap |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.89 | |
| 10 | $ 6.23 | |||
| 25 | $ 5.89 | |||
| 50 | $ 5.74 | |||
| 100 | $ 5.46 | |||
| 300 | $ 4.88 | |||
| 500 | $ 4.59 | |||
| 1000 | $ 4.02 | |||
| 2500 | $ 3.82 | |||
Description
General part information
29S211 Series
MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
