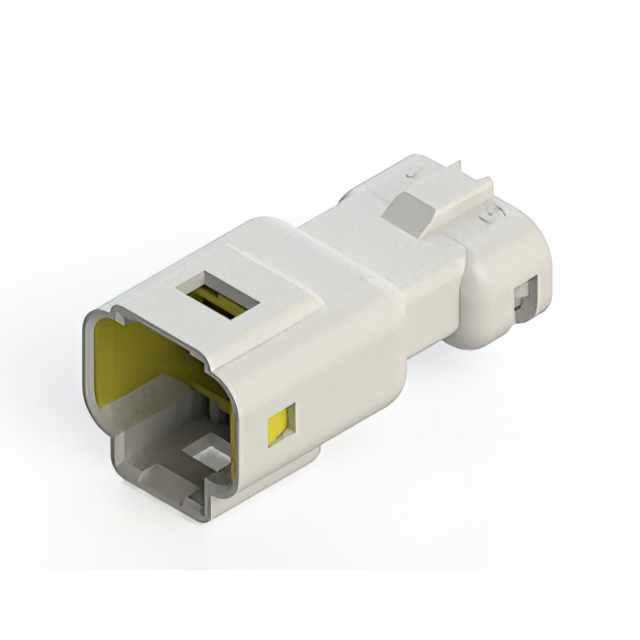

560-003-000-110

Active

EDAC Inc.

HOUSINGS (WIRE TO BOARD / WIRE TO WIRE ) ROHS

Search across all available documentation for this part.

Active

EDAC Inc.

HOUSINGS (WIRE TO BOARD / WIRE TO WIRE ) ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	560-003-000-110

Color	White
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

Part	Mounting Type	Pitch [x]	Pitch [x]	Features	Contact Termination	Connector Type	Fastening Type	Number of Rows	Insulation Material	Color	Note	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Height	Insulation Height	Ingress Protection	Termination	Number of Positions Loaded	Contact Material	Contact Shape	Contact Finish - Post	Shrouding	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Style	Pitch - Mating	Pitch - Mating	Insulation Color	Applications
EDAC Inc. 560-003-000-210	Free Hanging (In-Line)	0.098 in	2.5 mm	Waterproof	Crimp	Receptacle	Latch Lock	1	Polybutylene Terephthalate (PBT)	White	Contacts Not Included	-40 °C	105 ░C	Female Socket
EDAC Inc. 560-003-000-411	Free Hanging (In-Line)	0.098 in	2.5 mm	Waterproof	Crimp	Receptacle	Latch Lock	1	Polybutylene Terephthalate (PBT)	Blue	Contacts Not Included	-40 °C	105 ░C	Female Socket
EDAC Inc. 560-003-000-111	Free Hanging (In-Line)	0.098 in	2.5 mm	Waterproof	Crimp	Plug	Latch Holder	1	Polybutylene Terephthalate (PBT)	White	Contacts Not Included	-40 °C	105 ░C	Male Pin
EDAC Inc. 560-003-000-110	Free Hanging (In-Line)	0.098 in	2.5 mm	Waterproof	Crimp	Plug	Latch Holder	1	Polybutylene Terephthalate (PBT)	White	Contacts Not Included	-40 °C	105 ░C	Male Pin
EDAC Inc. 560-003-420-101	Through Hole					Header	Latch Holder	1	Polybutylene Terephthalate (PBT)			-40 °C	105 ░C	Male Pin	0.61 in	15.49 mm	IP67	Solder	All	Brass	Circular	Tin	Shrouded - 4 Wall	UL94 V-0	250 VDC	3 A	Board to Cable/Wire	2.5 mm	0.098 in	White	Automotive General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Plug White 0.098" (2.50mm)
