560-003-000-111

Active

EDAC Inc.

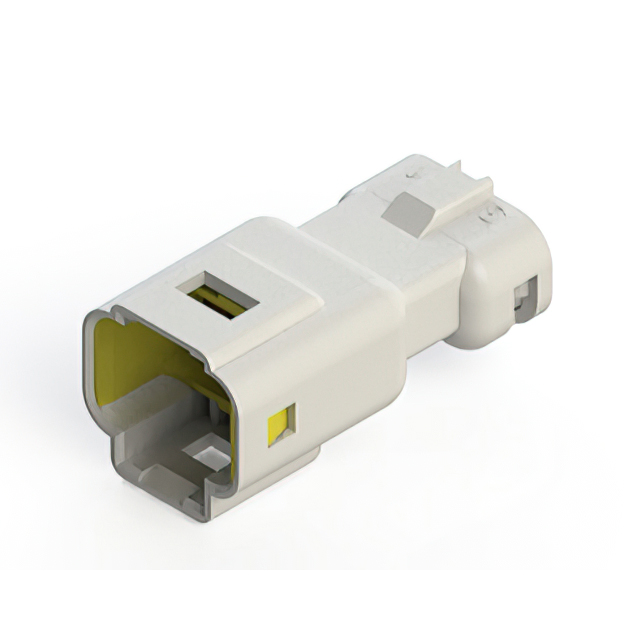

CONN PLUG HSG 3POS 2.50MM

Search across all available documentation for this part.

Active

EDAC Inc.

CONN PLUG HSG 3POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	560-003-000-111

Color	White
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

Part	Mounting Type	Pitch [x]	Pitch [x]	Features	Contact Termination	Connector Type	Fastening Type	Number of Rows	Insulation Material	Color	Note	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Height	Insulation Height	Ingress Protection	Termination	Number of Positions Loaded	Contact Material	Contact Shape	Contact Finish - Post	Shrouding	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Style	Pitch - Mating	Pitch - Mating	Insulation Color	Applications
EDAC Inc. 560-003-000-210	Free Hanging (In-Line)	0.098 in	2.5 mm	Waterproof	Crimp	Receptacle	Latch Lock	1	Polybutylene Terephthalate (PBT)	White	Contacts Not Included	-40 °C	105 ░C	Female Socket
EDAC Inc. 560-003-000-411	Free Hanging (In-Line)	0.098 in	2.5 mm	Waterproof	Crimp	Receptacle	Latch Lock	1	Polybutylene Terephthalate (PBT)	Blue	Contacts Not Included	-40 °C	105 ░C	Female Socket
EDAC Inc. 560-003-000-111	Free Hanging (In-Line)	0.098 in	2.5 mm	Waterproof	Crimp	Plug	Latch Holder	1	Polybutylene Terephthalate (PBT)	White	Contacts Not Included	-40 °C	105 ░C	Male Pin
EDAC Inc. 560-003-000-110	Free Hanging (In-Line)	0.098 in	2.5 mm	Waterproof	Crimp	Plug	Latch Holder	1	Polybutylene Terephthalate (PBT)	White	Contacts Not Included	-40 °C	105 ░C	Male Pin
EDAC Inc. 560-003-420-101	Through Hole					Header	Latch Holder	1	Polybutylene Terephthalate (PBT)			-40 °C	105 ░C	Male Pin	0.61 in	15.49 mm	IP67	Solder	All	Brass	Circular	Tin	Shrouded - 4 Wall	UL94 V-0	250 VDC	3 A	Board to Cable/Wire	2.5 mm	0.098 in	White	Automotive General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.03

General part information

3 Rectangular Connectors - Housings Plug White 0.098" (2.50mm)
