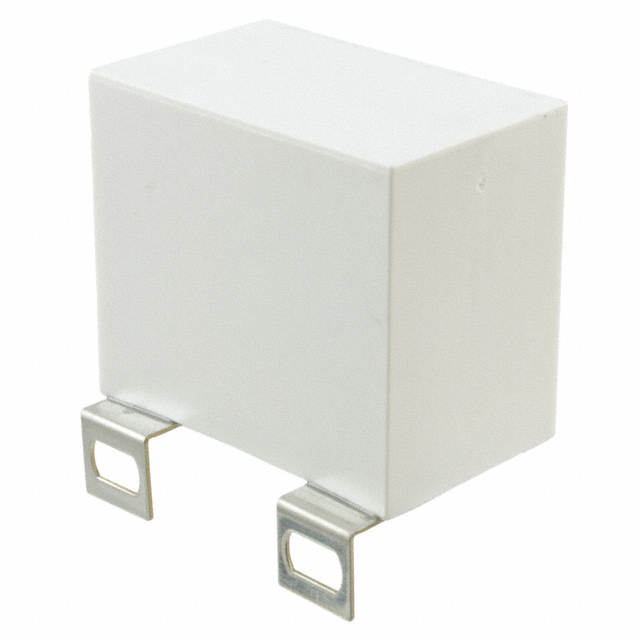

C4BTHBX5200ZANJ

Active

KEMET

CAP, FILM, PP, 20UF, 600VDC, PANEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

CAP, FILM, PP, 20UF, 600VDC, PANEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	C4BTHBX5200ZANJ

Applications	Switching, High Frequency, DC Filtering, DC Link
Capacitance	20 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	1.7 mOhm
Lead Spacing	41 mm
Lead Spacing	1.614 in
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Rectangular Box
Size / Dimension [x]	2.264 in
Size / Dimension [x]	57.5 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.378 "
Termination	Screw Terminals
Tolerance	5 %
Voltage Rating - AC	330 V
Voltage Rating - DC	600 V

Part	Lead Spacing	Lead Spacing	Voltage Rating - AC	Voltage Rating - DC	Mounting Type	Capacitance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	ESR (Equivalent Series Resistance)	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Dielectric Material	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C4BTHBX5200ZANJ	41 mm	1.614 in	330 V	600 V	Chassis Mount	20 µF	Rectangular Box	85 °C	-40 °C	5 %	1.7 mOhm	DC Filtering DC Link High Frequency Switching	35 mm	1.378 "	2.264 in	57.5 mm	Metallized Polypropylene (PP)	Screw Terminals
KEMET C4BTHBX4500ZAFJ	25.5 mm	1.004 in	330 V	600 V	Chassis Mount	5 µF	Rectangular Box	85 °C	-40 °C	5 %	2.9 mOhms	DC Filtering DC Link High Frequency Switching	20 mm	0.787 in	1.634 "	41.5 mm	Metallized Polypropylene (PP)	Screw Terminals	1.575 in	40 mm
KEMET C4BTHBX5100ZALJ	25.5 mm	1.004 in	330 V	600 V	Chassis Mount	10 µF	Rectangular Box	85 °C	-40 °C	5 %	1.6 mOhms	DC Filtering DC Link High Frequency Switching	30 mm	1.181 in	1.654 in	42 mm	Metallized Polypropylene (PP)	Screw Terminals	1.772 in	45 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 µF Film Capacitor 330V 600V Polypropylene (PP), Metallized Rectangular Box
