C4BTHBX4500ZAFJ

Active

KEMET

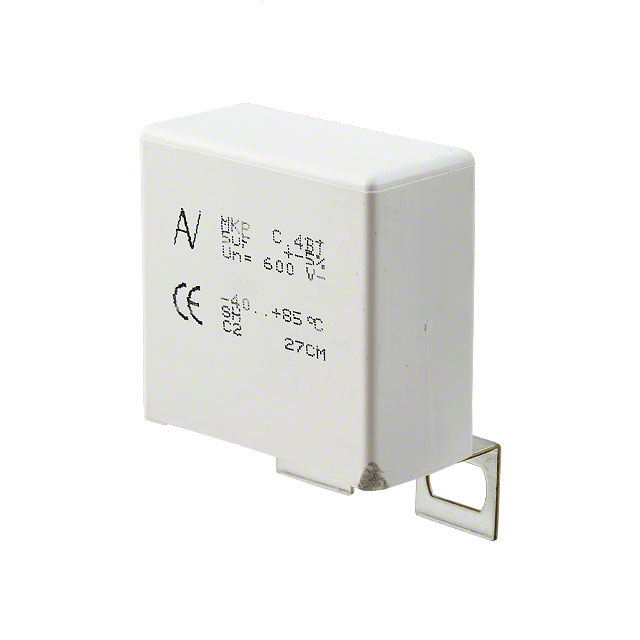

CAP FILM 5UF 5% 600VDC SCREW

Search across all available documentation for this part.

Active

KEMET

CAP FILM 5UF 5% 600VDC SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	C4BTHBX4500ZAFJ

Applications	Switching, High Frequency, DC Filtering, DC Link
Capacitance	5 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	2.9 mOhms
Height - Seated (Max) [Max] [z]	1.575 in
Height - Seated (Max) [Max] [z]	40 mm
Lead Spacing	25.5 mm
Lead Spacing	1.004 in
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Rectangular Box
Size / Dimension [x]	1.634 "
Size / Dimension [x]	41.5 mm
Size / Dimension [y]	20 mm
Size / Dimension [y]	0.787 in
Termination	Screw Terminals
Tolerance	5 %
Voltage Rating - AC	330 V
Voltage Rating - DC	600 V

Part	Lead Spacing	Lead Spacing	Voltage Rating - AC	Voltage Rating - DC	Mounting Type	Capacitance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	ESR (Equivalent Series Resistance)	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Dielectric Material	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C4BTHBX5200ZANJ	41 mm	1.614 in	330 V	600 V	Chassis Mount	20 µF	Rectangular Box	85 °C	-40 °C	5 %	1.7 mOhm	DC Filtering DC Link High Frequency Switching	35 mm	1.378 "	2.264 in	57.5 mm	Metallized Polypropylene (PP)	Screw Terminals
KEMET C4BTHBX4500ZAFJ	25.5 mm	1.004 in	330 V	600 V	Chassis Mount	5 µF	Rectangular Box	85 °C	-40 °C	5 %	2.9 mOhms	DC Filtering DC Link High Frequency Switching	20 mm	0.787 in	1.634 "	41.5 mm	Metallized Polypropylene (PP)	Screw Terminals	1.575 in	40 mm
KEMET C4BTHBX5100ZALJ	25.5 mm	1.004 in	330 V	600 V	Chassis Mount	10 µF	Rectangular Box	85 °C	-40 °C	5 %	1.6 mOhms	DC Filtering DC Link High Frequency Switching	30 mm	1.181 in	1.654 in	42 mm	Metallized Polypropylene (PP)	Screw Terminals	1.772 in	45 mm
