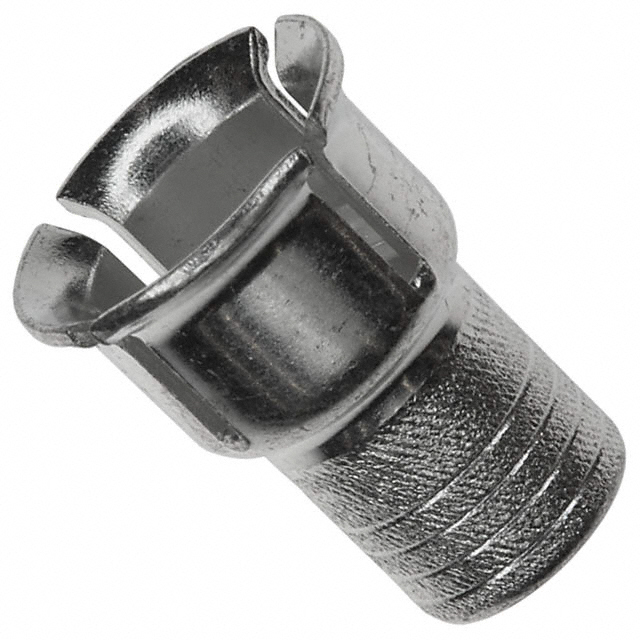

2-745129-9

Active

TE Connectivity Raychem Cable Protection

SHLDING FERRULE,PLTD,BULK PKG ROHS COMPLIANT: NO

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SHLDING FERRULE,PLTD,BULK PKG ROHS COMPLIANT: NO

Technical Specifications

Parameters and characteristics for this part

Specification	2-745129-9

Accessory Type	Ferrule, Inner
For Use With/Related Products	AMPLIMITE Series
Number of Positions	50

...

Part	Accessory Type	Length - Below Head [x]	Length - Below Head [x]	For Use With/Related Products	Thread Size	Features	Length - Below Head	Length - Below Head	Number of Positions	Shielding	Color	Material	Cable Exit	Compatible Shell Size	Primary Material	Cable Type	Compatible D-Sub Size	Hardware	Plating	Number of Positions [Min] [custom]	Number of Positions [Max] [custom]
TE Connectivity Raychem Cable Protection 5206514-4	Slide Lock Bolt	0.3 in	7.62 mm	HDE HDF HDP	4-40	Hardware Included
TE Connectivity Raychem Cable Protection 5205817-3	Jackscrew Socket			AMPLIMITE Series HDF HDP	4-40 Screw 4-40 Socket	Hardware Included	0.312 "	7.92 mm
TE Connectivity Raychem Cable Protection 749027-1	Slide Latch			AMPLIMITE Series					15
TE Connectivity Raychem Cable Protection 2-745129-9	Ferrule Inner			AMPLIMITE Series					50
TE Connectivity Raychem Cable Protection 7-745129-9	Ferrule Inner			AMPLIMITE Series					9 15 50
TE Connectivity Raychem Cable Protection 5745652-3	Two Piece Backshell					Slide Lock			15	Shielded	Silver	Metal Zinc Alloy	90 °	A	Metal	Round	15pos HD26pos	Assembly Hardware	Nickel over Copper
TE Connectivity Raychem Cable Protection 5205817-2	Jackscrew Socket			AMPLIMITE Series HDF HDP	4-40 Screw 4-40 Socket	Hardware Included	0.312 "	7.92 mm
TE Connectivity Raychem Cable Protection 1-745129-8	Ferrule Inner			AMPLIMITE Series					9 15 50
TE Connectivity Raychem Cable Protection 4-745130-0	Ferrule Outer			AMPLIMITE Series					9 15 50
TE Connectivity Raychem Cable Protection 745130-8	Ferrule Outer			AMPLIMITE Series																9	50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10000	$ 5.05
Newark	Each	2500	$ 5.30

General part information

Connector Ferrule, Inner For AMPLIMITE Series
