5206514-4

Active

TE Connectivity Raychem Cable Protection

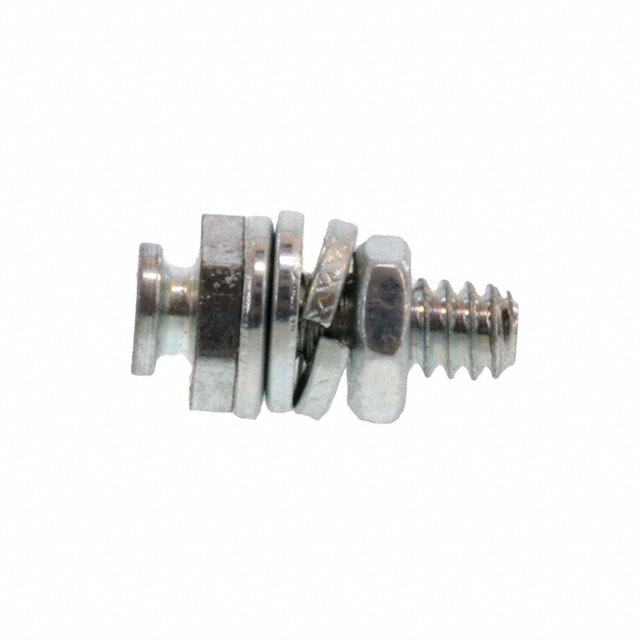

SLIDING LOCK POST KIT CLEAR Z1

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SLIDING LOCK POST KIT CLEAR Z1

Technical Specifications

Parameters and characteristics for this part

Specification	5206514-4

Accessory Type	Slide Lock Bolt
Features	Hardware Included
For Use With/Related Products	HDF, HDE, HDP
Length - Below Head [x]	0.3 in
Length - Below Head [x]	7.62 mm
Thread Size	4-40

...

Part	Accessory Type	Length - Below Head [x]	Length - Below Head [x]	For Use With/Related Products	Thread Size	Features	Length - Below Head	Length - Below Head	Number of Positions	Shielding	Color	Material	Cable Exit	Compatible Shell Size	Primary Material	Cable Type	Compatible D-Sub Size	Hardware	Plating	Number of Positions [Min] [custom]	Number of Positions [Max] [custom]
TE Connectivity Raychem Cable Protection 5206514-4	Slide Lock Bolt	0.3 in	7.62 mm	HDE HDF HDP	4-40	Hardware Included
TE Connectivity Raychem Cable Protection 5205817-3	Jackscrew Socket			AMPLIMITE Series HDF HDP	4-40 Screw 4-40 Socket	Hardware Included	0.312 "	7.92 mm
TE Connectivity Raychem Cable Protection 749027-1	Slide Latch			AMPLIMITE Series					15
TE Connectivity Raychem Cable Protection 2-745129-9	Ferrule Inner			AMPLIMITE Series					50
TE Connectivity Raychem Cable Protection 7-745129-9	Ferrule Inner			AMPLIMITE Series					9 15 50
TE Connectivity Raychem Cable Protection 5745652-3	Two Piece Backshell					Slide Lock			15	Shielded	Silver	Metal Zinc Alloy	90 °	A	Metal	Round	15pos HD26pos	Assembly Hardware	Nickel over Copper
TE Connectivity Raychem Cable Protection 5205817-2	Jackscrew Socket			AMPLIMITE Series HDF HDP	4-40 Screw 4-40 Socket	Hardware Included	0.312 "	7.92 mm
TE Connectivity Raychem Cable Protection 1-745129-8	Ferrule Inner			AMPLIMITE Series					9 15 50
TE Connectivity Raychem Cable Protection 4-745130-0	Ferrule Outer			AMPLIMITE Series					9 15 50
TE Connectivity Raychem Cable Protection 745130-8	Ferrule Outer			AMPLIMITE Series																9	50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Locking Post Kit, AMPLIMITE Kit
