JWL4048S05

Active

XP POWER

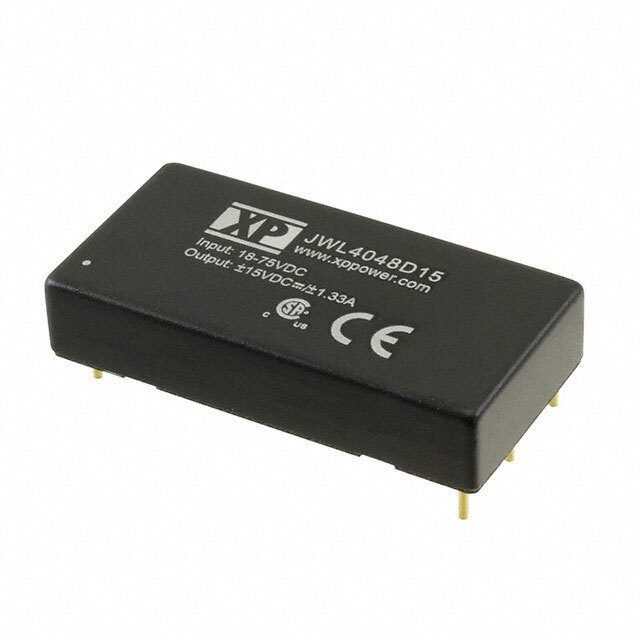

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 40 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

JWL4048S05

Active

XP POWER

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 40 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWL4048S05

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	8 A
Efficiency	90 %
Features	Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	40 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

JWL4048 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Package / Case	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Applications	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Type	Features	Standard Number	Control Features	Voltage - Output 2
XP POWER JWL4048S3V3	-40 °C	105 ░C	8 A	1.5 kV	1	6-DIP Module	40 W	75 V	18 V	3.3 V	ITE (Commercial)	89 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	Isolated Module	Remote On/Off SCP	62368-1	Active High Enable
XP POWER JWL4048D15	-40 °C	105 ░C	1.33 A	1.5 kV	2	6-DIP Module	40 W	75 V	18 V	15 V	ITE (Commercial)	88 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	Isolated Module	Remote On/Off SCP	62368-1	Active High Enable	-15 V
XP POWER JWL4048S05	-40 °C	105 ░C	8 A	1.5 kV	1	6-DIP Module	40 W	75 V	18 V	5 V	ITE (Commercial)	90 %	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	Isolated Module	Remote On/Off SCP	62368-1	Active High Enable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 90.38
		5	$ 87.67
		10	$ 84.96
		25	$ 81.34
		100	$ 75.92
Newark	Each	10	$ 84.96
		25	$ 81.34
		100	$ 75.92

Description

General part information

JWL4048 Series
