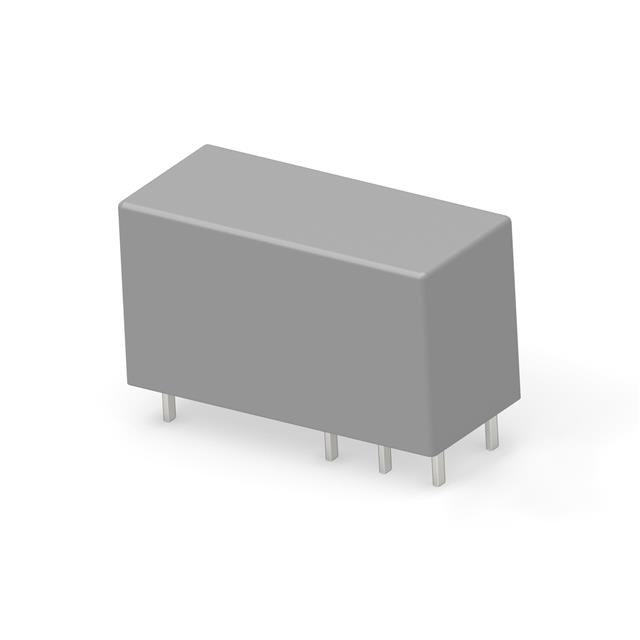

1415539-5

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY SPDT 12A 24V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY SPDT 12A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Switching Voltage [Max]	Coil Voltage	Contact Rating (Current)	Coil Current	Coil Resistance	Approval Agency	Release Time	Seal Rating	Relay Type	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Type	Contact Form	Must Operate Voltage	Operate Time	Coil Insulation	Coil Type	Termination Style	Must Release Voltage
TE Connectivity Potter & Brumfield Relays RT314A12	400 VAC	12 VDC	16 A	33.3 mA	360 Ohms	CQC CSA cURus VDE	10 ms	Sealed - Flux Protection	General Purpose	6400 VA	85 °C	-40 °C	Silver Nickel (AgNi)	Through Hole	SPDT (1 Form C)	8.4 VDC	10 ms	Class F	Latching Single Coil	PC Pin
TE Connectivity Potter & Brumfield Relays RT314A24	400 VAC	24 VDC	16 A	16.7 mA	1440 Ohms	CQC CSA cURus VDE	10 ms	Sealed - Flux Protection	General Purpose	6400 VA	85 °C	-40 °C	Silver Nickel (AgNi)	Through Hole	SPDT (1 Form C)	16.8 VDC	10 ms	Class F	Latching Single Coil	PC Pin
TE Connectivity Potter & Brumfield Relays 1415539-5	400 VAC	24 VDC	12 A			CQC CSA cURus VDE	10 ms	Sealed - Fully	General Purpose	4800 VA	85 °C	-40 °C	Silver Nickel (AgNi)	Through Hole	SPDT (1 Form C)	16.8 VDC	10 ms	Class F	Latching Single Coil	PC Pin	2.4 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
