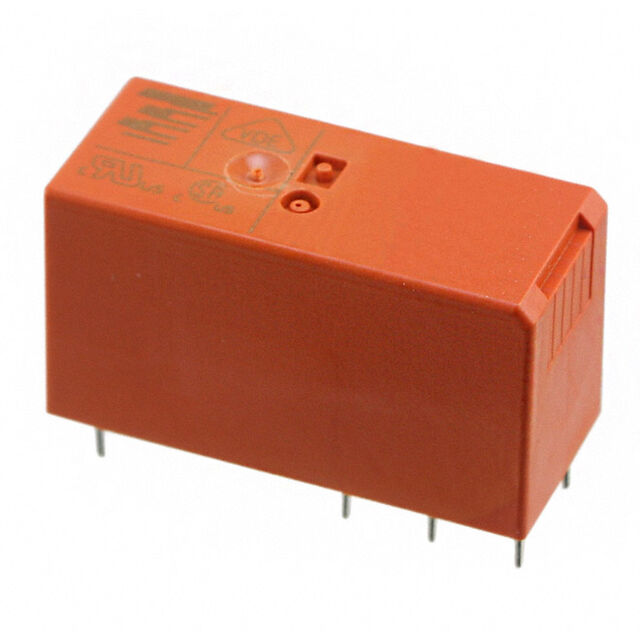

RT314A24

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 24V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 16A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Switching Voltage [Max]	Coil Voltage	Contact Rating (Current)	Coil Current	Coil Resistance	Approval Agency	Release Time	Seal Rating	Relay Type	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Type	Contact Form	Must Operate Voltage	Operate Time	Coil Insulation	Coil Type	Termination Style	Must Release Voltage
TE Connectivity Potter & Brumfield Relays RT314A12	400 VAC	12 VDC	16 A	33.3 mA	360 Ohms	CQC CSA cURus VDE	10 ms	Sealed - Flux Protection	General Purpose	6400 VA	85 °C	-40 °C	Silver Nickel (AgNi)	Through Hole	SPDT (1 Form C)	8.4 VDC	10 ms	Class F	Latching Single Coil	PC Pin
TE Connectivity Potter & Brumfield Relays RT314A24	400 VAC	24 VDC	16 A	16.7 mA	1440 Ohms	CQC CSA cURus VDE	10 ms	Sealed - Flux Protection	General Purpose	6400 VA	85 °C	-40 °C	Silver Nickel (AgNi)	Through Hole	SPDT (1 Form C)	16.8 VDC	10 ms	Class F	Latching Single Coil	PC Pin
TE Connectivity Potter & Brumfield Relays 1415539-5	400 VAC	24 VDC	12 A			CQC CSA cURus VDE	10 ms	Sealed - Fully	General Purpose	4800 VA	85 °C	-40 °C	Silver Nickel (AgNi)	Through Hole	SPDT (1 Form C)	16.8 VDC	10 ms	Class F	Latching Single Coil	PC Pin	2.4 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
