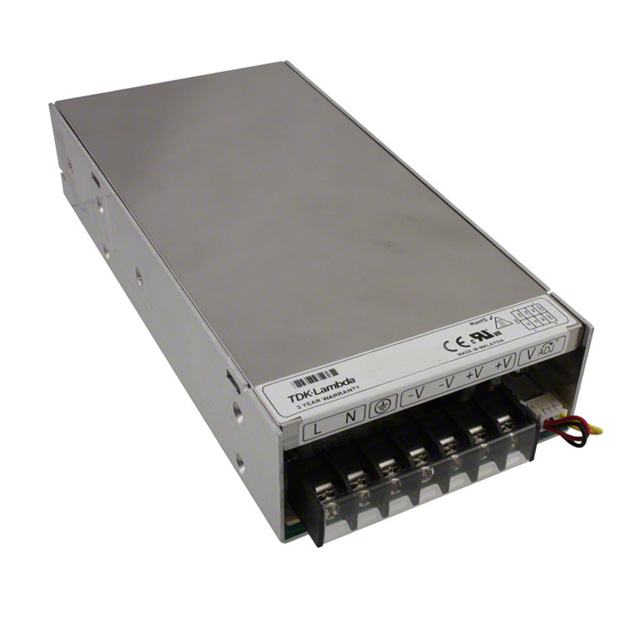

LS200-24/L

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 201.6W, 200 W, 85V AC TO 264V AC

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 201.6W, 200 W, 85V AC TO 264V AC

Technical Specifications

Parameters and characteristics for this part

Specification	LS200-24/L

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	8.4 A
Efficiency	84 %
Features	Universal Input, Remote Sense, DC Input Capable, Remote On/Off
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	200 W
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Power (Watts)	Features	Current - Output 1	Efficiency	Approval Agency	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Output 1	Number of Outputs	Mounting Type	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
TDK-LAMBDA LS200-24/L	200 W	DC Input Capable Remote On/Off Remote Sense Universal Input	8.4 A	84 %	CE	3000 V	-25 °C	70 °C	Open Frame	24 V	1	Chassis Mount	ITE (Commercial)
TDK-LAMBDA LS200-5/L	200 W	DC Input Capable Remote On/Off Remote Sense Universal Input	40 A	75 %	CE	3000 V	-25 °C	70 °C	Open Frame	5 V	1	Chassis Mount	ITE (Commercial)
TDK-LAMBDA LS200-48	200 W	Adjustable Output DC Input Capable Universal Input	4.2 A	85 %	CE	3000 V	-25 °C	70 °C	Enclosed	48 V	1	Chassis Mount	ITE (Commercial)	264 VAC	88 VAC	99.1 mm	1.61 "	7.8 in	40.9 mm	3.9 in	198.1 mm
TDK-LAMBDA LS200-12	200 W	Adjustable Output DC Input Capable Universal Input	16.7 A	79 %	CE	3000 V	-25 °C	70 °C	Enclosed	12 V	1	Chassis Mount	ITE (Commercial)	264 VAC	88 VAC	99.1 mm	1.61 "	7.8 in	40.9 mm	3.9 in	198.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 82.51

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
