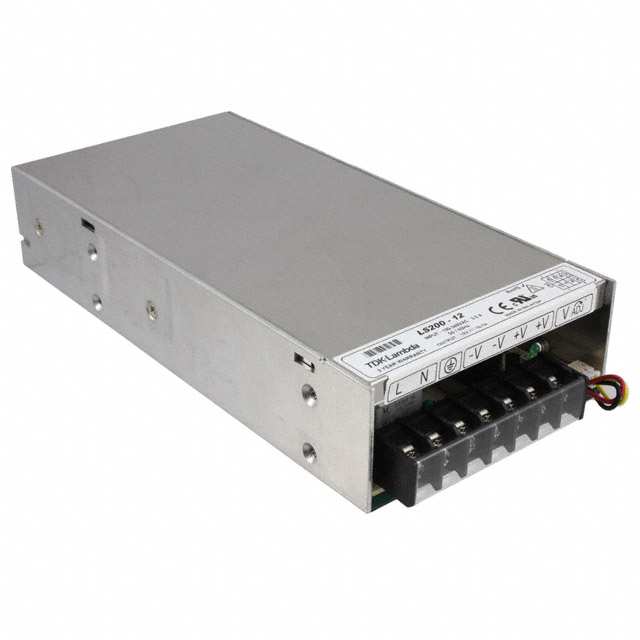

LS200-12
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 200 W, 12 V, 16.7 A
Deep-Dive with AI
Search across all available documentation for this part.
LS200-12
ActiveTDK-LAMBDA
AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 200 W, 12 V, 16.7 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LS200-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 16.7 A |
| Efficiency | 79 % |
| Features | Universal Input, Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 200 W |
| Size / Dimension [x] | 7.8 in |
| Size / Dimension [x] | 198.1 mm |
| Size / Dimension [y] | 99.1 mm |
| Size / Dimension [y] | 3.9 in |
| Size / Dimension [z] | 1.61 " |
| Size / Dimension [z] | 40.9 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 88 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LS200 Series
The LS200-12 is a 12V/200W 1-output general purpose Power Supply with a wide range AC input, small size, internal fan cooling and 1.6-inch height for 1U racking. This power supply output is fixed and can be adjustable.
