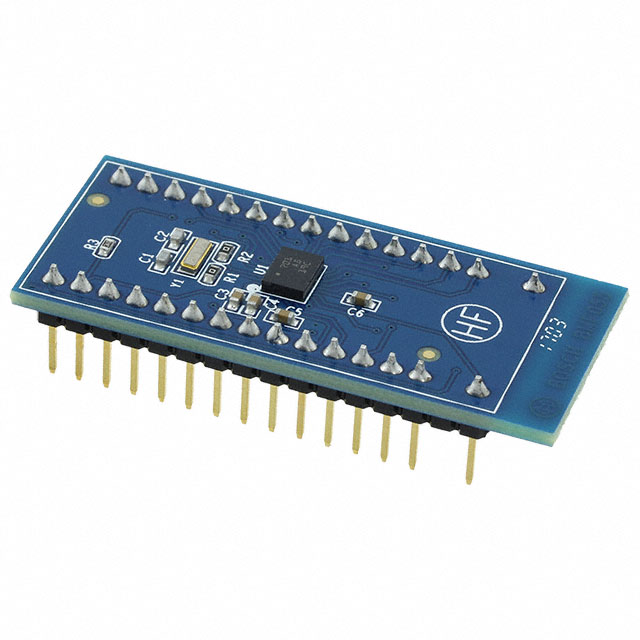

BMF055-SHUTL

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMF055

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMF055

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMF055 Accelerometer, Gyroscope, Magnetometer Sensor Platform Evaluation Expansion Board

Technical documentation and resources

Specification	BMF055-SHUTL	BMF055 Series

Contents	Board(s)	Board(s)
Function	Magnetometer, Gyroscope, Accelerometer	Magnetometer, Gyroscope, Accelerometer
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, UART
Package / Case	-	28-TFLGA Module
Sensor Type	-	Accelerometer, Gyroscope, 9 Axis, Magnetometer
Supplier Device Package	-	28-LGA (5.2x3.8)
Type	Sensor	Sensor
Utilized IC / Part	BMF055	BMF055

Part	Supplier Device Package	Package / Case	Mounting Type	Output Type	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Function	Type	Contents	Utilized IC / Part
Bosch Sensortec BMF055	28-LGA (5.2x3.8)	28-TFLGA Module	Surface Mount	I2C, UART	9 Axis, Accelerometer, Gyroscope, Magnetometer	85 °C	-40 °C
Bosch Sensortec BMF055-SHUTL								Accelerometer, Gyroscope, Magnetometer	Sensor	Board(s)	BMF055
