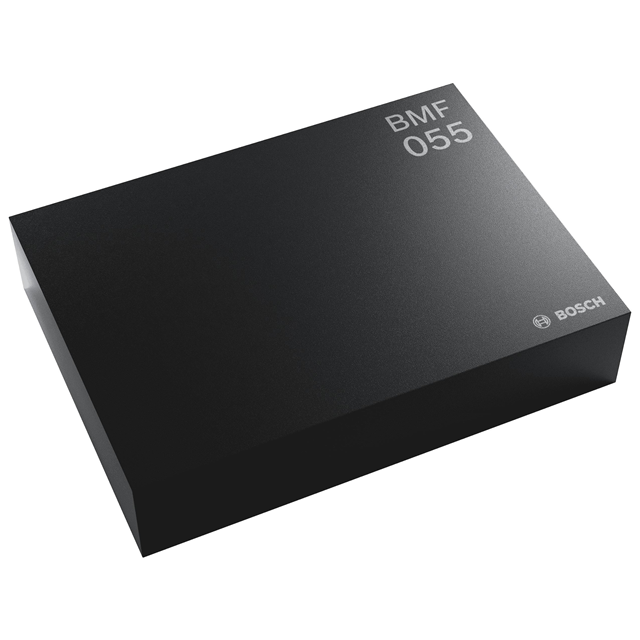

BMF055

Obsolete

Bosch Sensortec

IMU ACCEL/GYRO/MAG VOLTAGE 28LGA

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

IMU ACCEL/GYRO/MAG VOLTAGE 28LGA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMF055	BMF055 Series

Contents	-	Board(s)
Function	-	Magnetometer, Gyroscope, Accelerometer
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C, UART	I2C, UART
Package / Case	28-TFLGA Module	28-TFLGA Module
Sensor Type	Accelerometer, Gyroscope, 9 Axis, Magnetometer	Accelerometer, Gyroscope, 9 Axis, Magnetometer
Supplier Device Package	28-LGA (5.2x3.8)	28-LGA (5.2x3.8)
Type	-	Sensor
Utilized IC / Part	-	BMF055

IMU ACCEL/GYRO/MAG VOLTAGE 28LGA

Part	Supplier Device Package	Package / Case	Mounting Type	Output Type	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Function	Type	Contents	Utilized IC / Part
Bosch Sensortec BMF055	28-LGA (5.2x3.8)	28-TFLGA Module	Surface Mount	I2C, UART	9 Axis, Accelerometer, Gyroscope, Magnetometer	85 °C	-40 °C
Bosch Sensortec BMF055-SHUTL								Accelerometer, Gyroscope, Magnetometer	Sensor	Board(s)	BMF055

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer, Gyroscope, Magnetometer, 9 Axis Sensor I2C, UART Output
