TUSB1104RNQT

Active

Texas Instruments

USB TYPE-C™ 10-GBPS 3.2 X2 ADAPTIVE LINEAR REDRIVER

Find alt

Alpha

TUSB1104RNQT

Active

Texas Instruments

USB TYPE-C™ 10-GBPS 3.2 X2 ADAPTIVE LINEAR REDRIVER

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

TUSB1104 Series

The TUSB1104 is a 10Gbps USB 3.2 x2 linear redriver for USB-C applications enabling up to 20Gbps total data throughput. The TUSB1104 is intended to reside between a Host and a USB-C receptacle or between a USB device and a USB-C receptacle. The TUSB1104 supports both USB 3.2 Gen2 (10Gbps) and Gen1 (5Gbps) as well as USB 3.2 low power states (Disconnect, U1, U2, and U3).

The TUSB1104 incorporates an adaptive receiver equalization (AEQ) feature. The AEQ feature automatically determines what the best ISI compensation settings are between the TUSB1104 and USB device plugged into the USB connector resulting in improved interoperability.

The TUSB1104 operates from a single 3.3V supply and is available in a 40-pin WQFN package.

Technical Specifications

Parameters and characteristics for this part

Specification	TUSB1104RNQT

Applications	USB Type C
Capacitance - Input	10 pF
Data Rate (Max)	10 Gbps
Delay Time	300 ps
Input	Differential
Mounting Type	Surface Mount
Number of Channels	4
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Output	Differential
Package / Case	40-WFQFN Exposed Pad
Package Length	6 mm
Package Name	40-WQFN
Package Width	4 mm
Signal Conditioning	Output De-Emphasis, Input Equalization
Type	ReDriver, Buffer
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	3 V

TUSB1104 Series

USB Type-C™ 10-Gbps 3.2 x2 adaptive linear redriver

Part	Package Width	Package Name	Package Length	Applications	Type	Package / Case	Data Rate (Max)	Delay Time	Capacitance - Input	Mounting Type	Output	Operating Temperature (Max)	Operating Temperature (Min)	Input	Signal Conditioning	Number of Channels	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Supplied Contents	Secondary Attributes	Embedded	Utilized IC / Part	Contents	Function
Texas Instruments TUSB1104IRNQR	4 mm	40-WQFN	6 mm	USB Type C	Buffer ReDriver	40-WFQFN Exposed Pad	10 Gbps	300 ps	10 pF	Surface Mount	Differential	85 °C	-40 °C	Differential	Input Equalization Output De-Emphasis	4	3.6 V	3 V
Texas Instruments TUSB1104RNQR	4 mm	40-WQFN	6 mm	USB Type C	Buffer ReDriver	40-WFQFN Exposed Pad	10 Gbps	300 ps	10 pF	Surface Mount	Differential	70 °C	0 °C	Differential	Input Equalization Output De-Emphasis	4	3.6 V	3 V
Texas Instruments TUSB1104RNQT	4 mm	40-WQFN	6 mm	USB Type C	Buffer ReDriver	40-WFQFN Exposed Pad	10 Gbps	300 ps	10 pF	Surface Mount	Differential	70 °C	0 °C	Differential	Input Equalization Output De-Emphasis	4	3.6 V	3 V

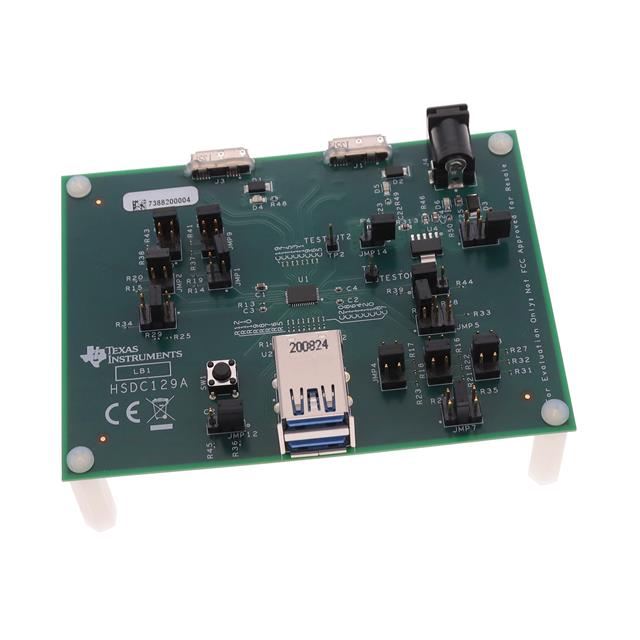

Texas Instruments TUSB1104EVM					Interface														Board(s)	I2C Interface(s)	No	TUSB1104	Board	USB Type-C®
Texas Instruments TUSB1104IRNQT	4 mm	40-WQFN	6 mm	USB Type C	Buffer ReDriver	40-WFQFN Exposed Pad	10 Gbps	300 ps	10 pF	Surface Mount	Differential	85 °C	-40 °C	Differential	Input Equalization Output De-Emphasis	4	3.6 V	3 V
