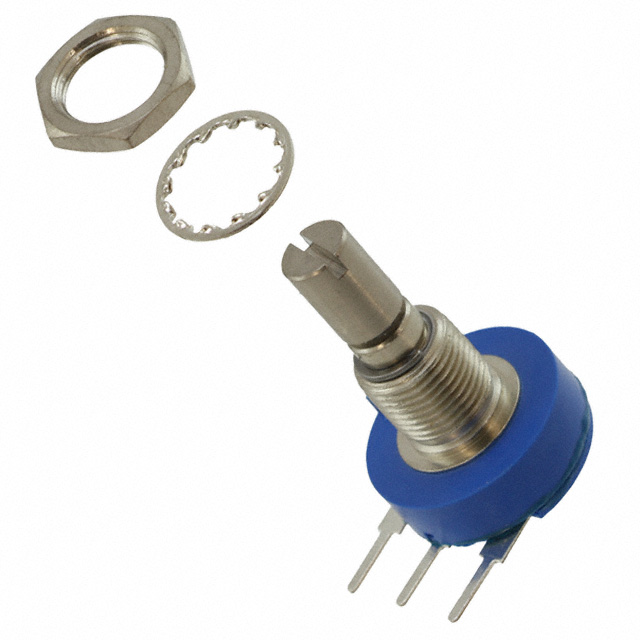

3856A-286-103AL

Active

Bourns Inc.

RES CERMET POT 10K OHM 10% 2W 1(ELEC)/3.75(MECH)TURN 6.35MM (19.05 X 28.55MM) PIN PANEL MOUNT/THROUGH HOLE

Search across all available documentation for this part.

Active

Bourns Inc.

RES CERMET POT 10K OHM 10% 2W 1(ELEC)/3.75(MECH)TURN 6.35MM (19.05 X 28.55MM) PIN PANEL MOUNT/THROUGH HOLE

Technical Specifications

Parameters and characteristics for this part

Part	Resistance (Ohms)	Actuator Diameter	Actuator Diameter [diameter]	Taper	Bushing Thread	Adjustment Type	Size - Body [diameter]	Size - Body [diameter]	Actuator Length [z]	Actuator Length [z]	Number of Turns	Number of Gangs	Power (Watts)	Rotation	Termination Style	Actuator Type	Resistive Material	Temperature Coefficient	Tolerance	Resistance (Ohms)
Bourns Inc. 3856A-282-102AL	1 kOhms	6.35 mm	0.25 in	Linear	3/8-32	User Defined	0.75 in	19.05 mm	22.23 mm	0.875 in	3.75	1	2 W	1350 °	Solder Lug	Slotted	Cermet	150 ppm/°C	10 %
Bourns Inc. 3856A-286-103AL		6.35 mm	0.25 in	Linear	3/8-32	Side Adjustment	0.75 in	19.05 mm	22.23 mm	0.875 in	3.75	1	2 W	1350 °	PC Pins	Slotted	Cermet	150 ppm/°C	10 %	10k
Bourns Inc. 3856A-282-503AL	50 kOhms	6.35 mm	0.25 in	Linear	3/8-32	User Defined	0.75 in	19.05 mm	22.23 mm	0.875 in	3.75	1	2 W	1350 °	Solder Lug	Slotted	Cermet	150 ppm/°C	10 %
Bourns Inc. 3856A-282-502AL	5 kOhms	6.35 mm	0.25 in	Linear	3/8-32	User Defined	0.75 in	19.05 mm	22.23 mm	0.875 in	3.75	1	2 W	1350 °	Solder Lug	Slotted	Cermet	150 ppm/°C	10 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10k Ohm 1 Gang Linear Panel Mount Potentiometer 3.75 Turns Cermet 2W PC Pins
