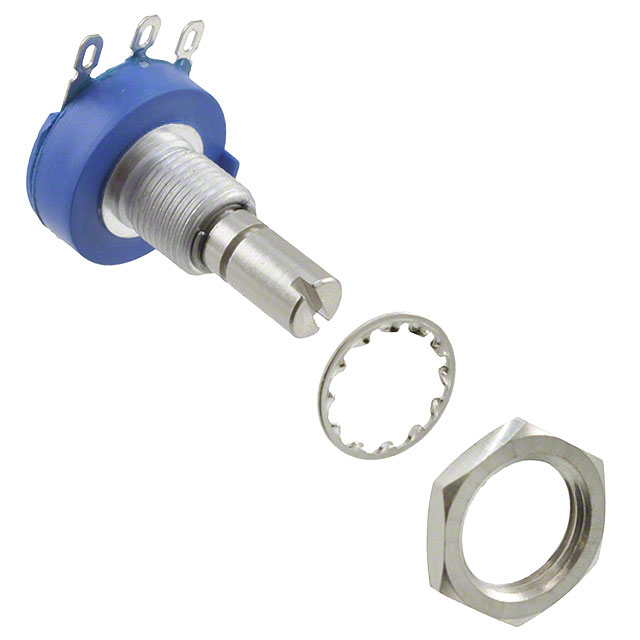

3856A-282-503AL

Active

Bourns Inc.

POT 50K OHM 2W CERMET LINEAR

Search across all available documentation for this part.

Active

Bourns Inc.

POT 50K OHM 2W CERMET LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Resistance (Ohms)	Actuator Diameter	Actuator Diameter [diameter]	Taper	Bushing Thread	Adjustment Type	Size - Body [diameter]	Size - Body [diameter]	Actuator Length [z]	Actuator Length [z]	Number of Turns	Number of Gangs	Power (Watts)	Rotation	Termination Style	Actuator Type	Resistive Material	Temperature Coefficient	Tolerance	Resistance (Ohms)
Bourns Inc. 3856A-282-102AL	1 kOhms	6.35 mm	0.25 in	Linear	3/8-32	User Defined	0.75 in	19.05 mm	22.23 mm	0.875 in	3.75	1	2 W	1350 °	Solder Lug	Slotted	Cermet	150 ppm/°C	10 %
Bourns Inc. 3856A-286-103AL		6.35 mm	0.25 in	Linear	3/8-32	Side Adjustment	0.75 in	19.05 mm	22.23 mm	0.875 in	3.75	1	2 W	1350 °	PC Pins	Slotted	Cermet	150 ppm/°C	10 %	10k
Bourns Inc. 3856A-282-503AL	50 kOhms	6.35 mm	0.25 in	Linear	3/8-32	User Defined	0.75 in	19.05 mm	22.23 mm	0.875 in	3.75	1	2 W	1350 °	Solder Lug	Slotted	Cermet	150 ppm/°C	10 %
Bourns Inc. 3856A-282-502AL	5 kOhms	6.35 mm	0.25 in	Linear	3/8-32	User Defined	0.75 in	19.05 mm	22.23 mm	0.875 in	3.75	1	2 W	1350 °	Solder Lug	Slotted	Cermet	150 ppm/°C	10 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50k Ohm 1 Gang Linear Panel Mount Potentiometer 3.75 Turns Cermet 2W Solder Lug
