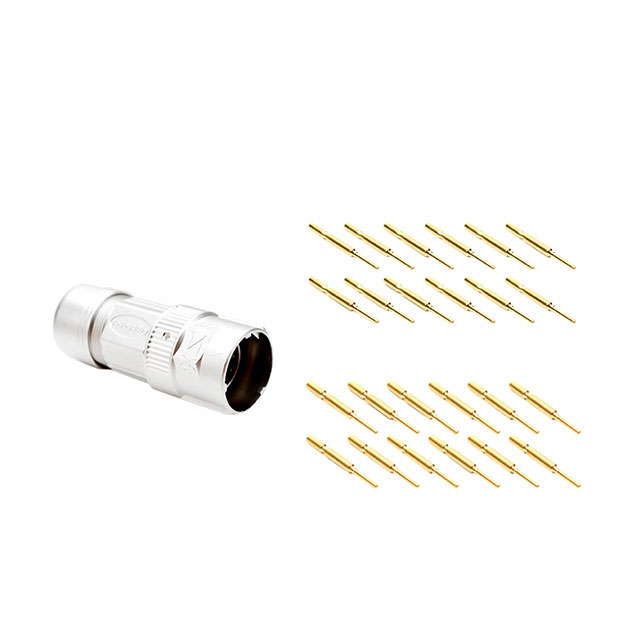

MA5CAE1200-S1-KIT

Active

Amphenol Sine Systems Corp

CONN PLUG MALE 12POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MA5CAE1200-S1-KIT

Active

Amphenol Sine Systems Corp

CONN PLUG MALE 12POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MA5CAE1200-S1-KIT

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	10 A
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-12
Shielding	Shielded
Termination	Crimp
Voltage Rating	160 V

MA5CAE Series

Part	Orientation	Contact Shape	Housing Color	Shell Finish	Shell Material	Contact Type	Connector Type	Insert Material	Shell Size - Insert	Ingress Protection	Material Flammability Rating	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Note	Type	Contact Size	Fastening Type	Primary Material	Termination	Voltage Rating	Color	Current Rating (Amps)	Number of Positions	Contact Finish - Mating	Number of Positions
Amphenol Sine Systems Corp MA5CAE1700-S2	N	Circular	Silver	Nickel	Zinc Die Cast	Crimp	Plug Housing	Polyamide (PA66) Nylon 6/6	M23-17	IP67 - Dust Tight Waterproof	UL94 V-0	Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded	Contacts Not Included	For Female Sockets or Male Pins	1 mm	Push-Twist
Amphenol Sine Systems Corp MA5CAE1200S-S1-KIT	N			Nickel	Zinc Die Cast		Female Sockets Plug		M23-12	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	160 V	Silver	10 A	12	Gold
Amphenol Sine Systems Corp MA5CAE1200S-S3-KIT	N			Nickel	Zinc Die Cast		Female Sockets Plug		M23-12	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	160 V	Silver	10 A	12	Gold
Amphenol Sine Systems Corp MA5CAE1200S-S2-KIT	N			Nickel	Zinc Die Cast		Female Sockets Plug		M23-12	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	160 V	Silver	10 A	12	Gold
Amphenol Sine Systems Corp MA5CAE1200-S2	N	Circular	Silver	Nickel	Zinc Die Cast	Crimp	Plug Housing	Polyamide (PA66) Nylon 6/6	M23-12	IP67 - Dust Tight Waterproof	UL94 V-0	Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded	Contacts Not Included	For Female Sockets or Male Pins	1 mm	Push-Twist						12
Amphenol Sine Systems Corp MA5CAE1600-S1	N	Circular	Silver	Nickel	Zinc Die Cast	Crimp	Plug Housing	Polyamide (PA66) Nylon 6/6	M23-16	IP67 - Dust Tight Waterproof	UL94 V-0	Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded	Contacts Not Included	For Female Sockets or Male Pins	1 mm	Push-Twist								16
Amphenol Sine Systems Corp MA5CAE1200-S2-KIT	N			Nickel	Zinc Die Cast		Male Pins Plug		M23-12	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	160 V	Silver	10 A	12	Gold
Amphenol Sine Systems Corp MA5CAE1700-S3-KIT	N			Nickel	Zinc Die Cast		Male Pins Plug		M23-17	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	125 VAC	Silver	9 A		Gold
Amphenol Sine Systems Corp MA5CAE1700S-S2-KIT	N			Nickel	Zinc Die Cast		Female Sockets Plug		M23-17	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	125 VAC	Silver	9 A		Gold
Amphenol Sine Systems Corp MA5CAE1200-S1-KIT	N			Nickel	Zinc Die Cast		Male Pins Plug		M23-12	IP67 - Dust Tight Waterproof		Backshell Coupling Nut	Free Hanging (In-Line)	-20 C	130 °C	Shielded				Push-Twist	Metal	Crimp	160 V	Silver	10 A	12	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.44
		10	$ 38.04
		30	$ 36.40
		50	$ 35.22
		100	$ 34.05
		250	$ 32.17

Description

General part information

MA5CAE Series

12 Position Circular Connector Plug, Male Pins Crimp
